Figure 2

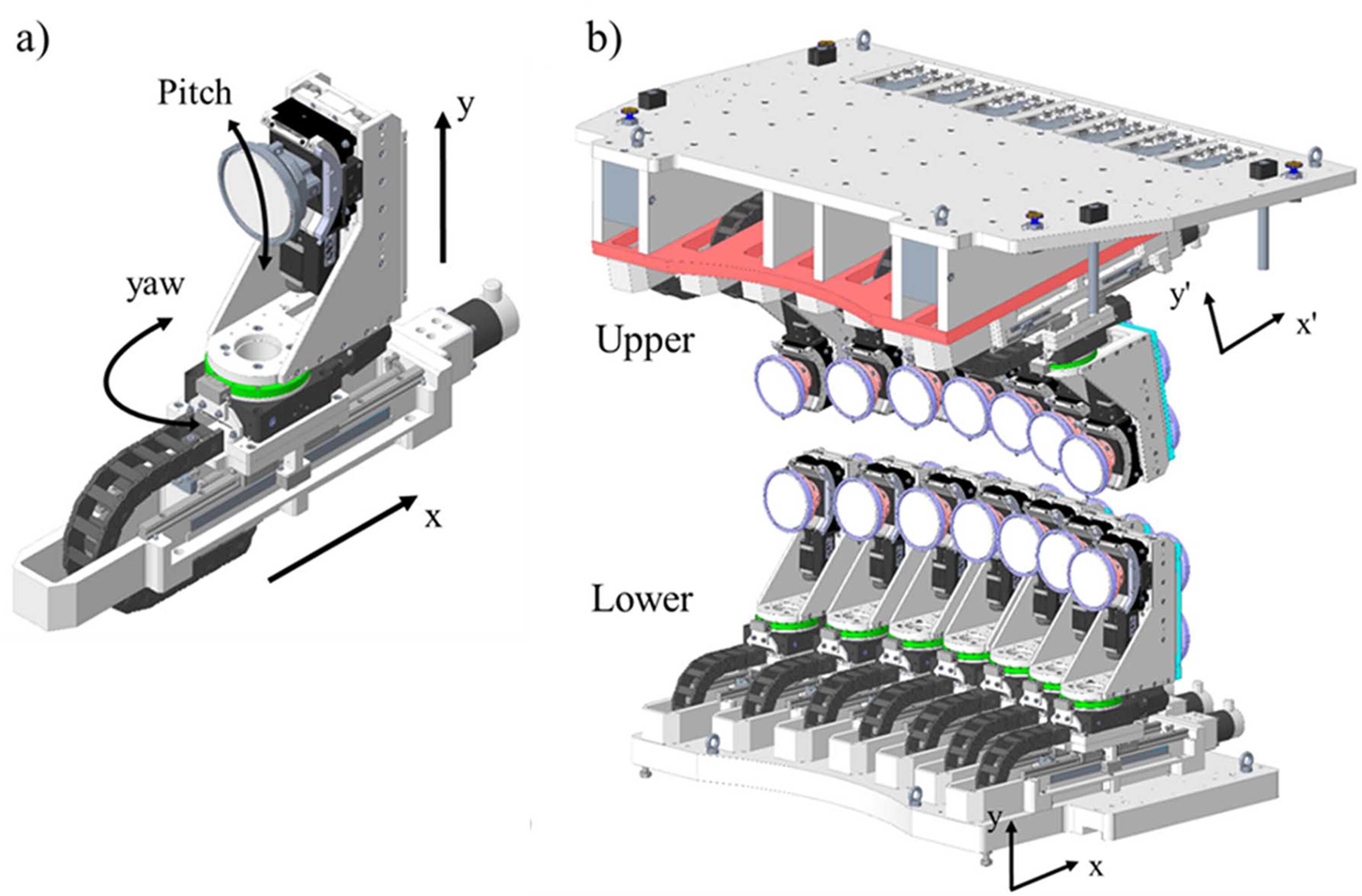

Schematic view of the upper and lower crystal analyser stages. (a) Design of the individual crystal analyser platform. All 14 stacks have identical configurations with x, y, yaw and pitch movements. (b) The upper plate is inclined 11° with respect to the x axis. Both crystal analyser platforms are aligned to point towards the sample position.
