F K-edge XAS as a tool to examine F environments in complex inorganic systems

Dixon Wilkins, M.C.; Bussey, J.M.; McCloy, J.S.

doi:10.1107/S1600577526002821

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 4

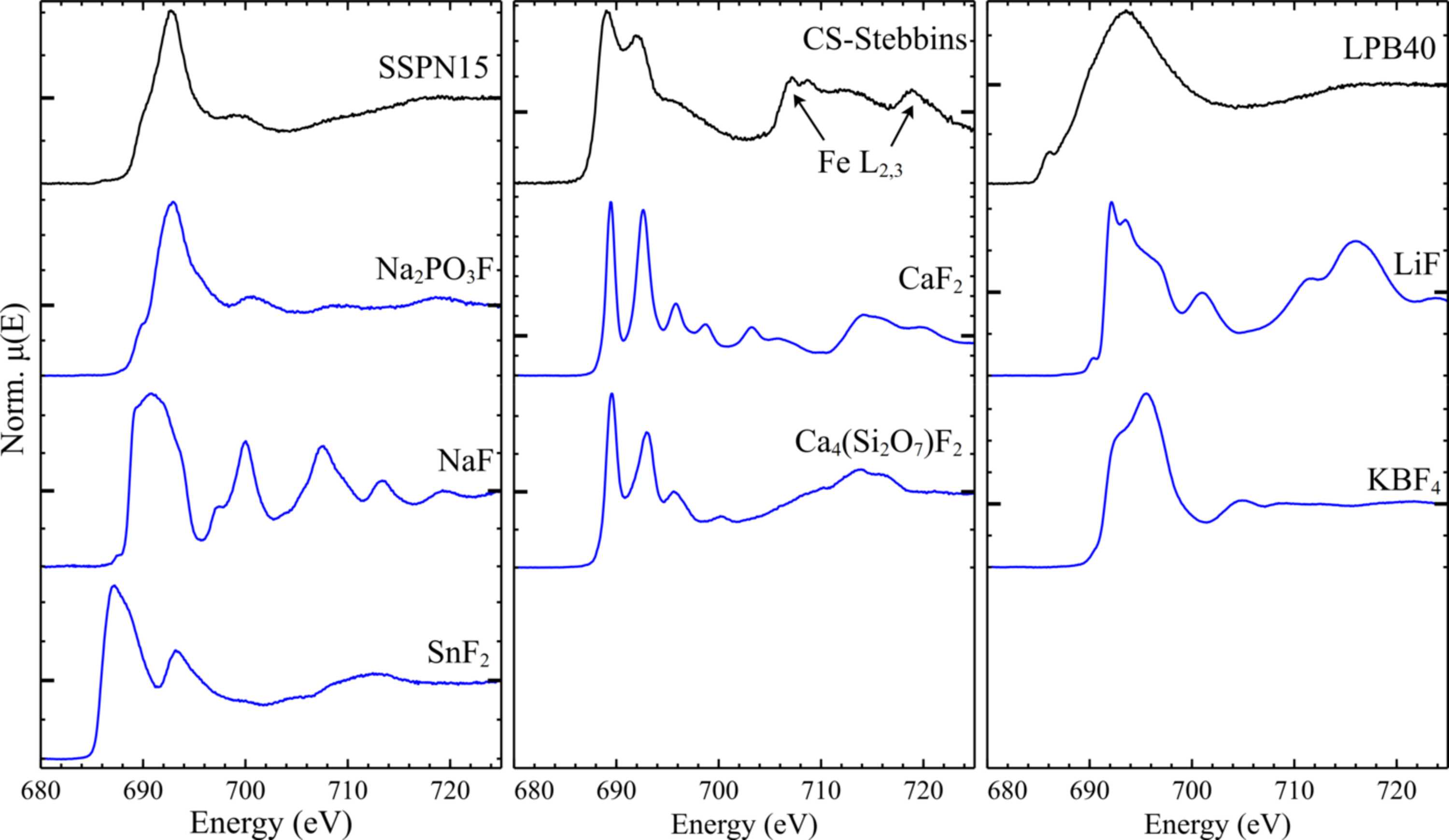

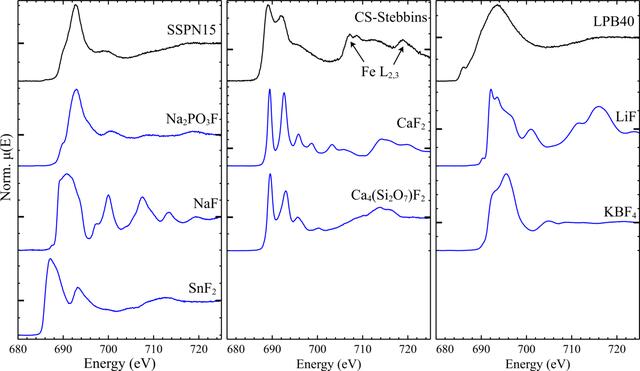

Normalized F K-edge spectra of three glasses, SSPN15 (left), CS-Stebbins (centre), LPB40 (right) (see text for compositions), alongside a range of synthetic crystalline reference compounds. The spectra of the glasses, Na₂PO₃F, SnF₂ and Ca₄Si₂O₇F₂, are PFY-detected; the spectra of NaF, CaF₂, LiF and KBF₄ are TEY-detected. Each spectrum is presented on a unique y-axis, with μ(E) = 1 marked with a larger tick.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 3| May 2026| Pages 715-724

https://doi.org/10.1107/S1600577526002821
