Figure 1

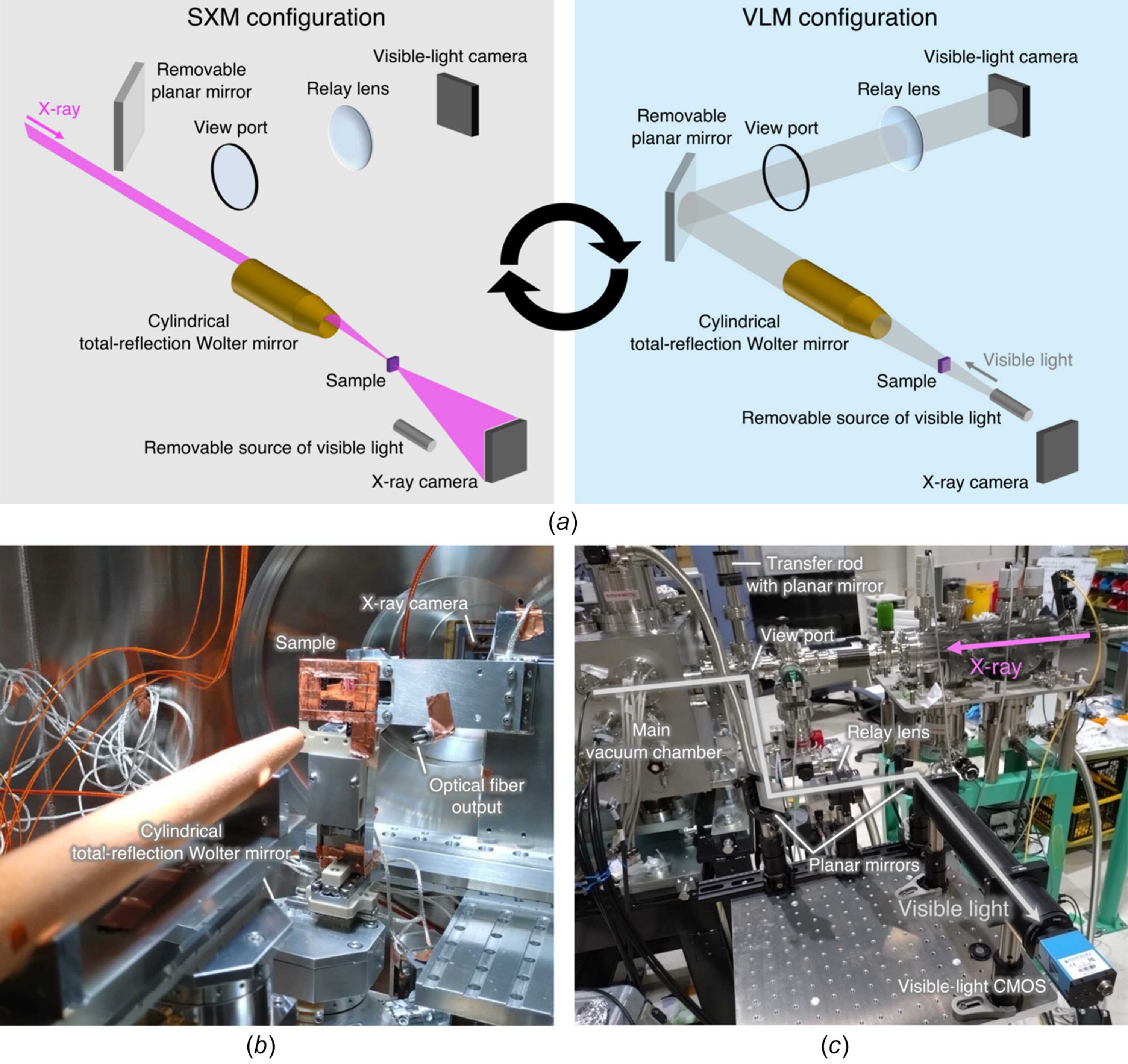

Beamline system in which a single Wolter mirror functions as both X-ray condenser optic in the SXM and visible-light objective optic in the VLM. (a) Schematic illustration of both the SXM and VLM configurations. (b, c) Constructed system (b) in the main vacuum chamber and (c) out of the vacuum.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 3| May 2026| Pages 604-608
https://doi.org/10.1107/S1600577526003127
