Figure 1

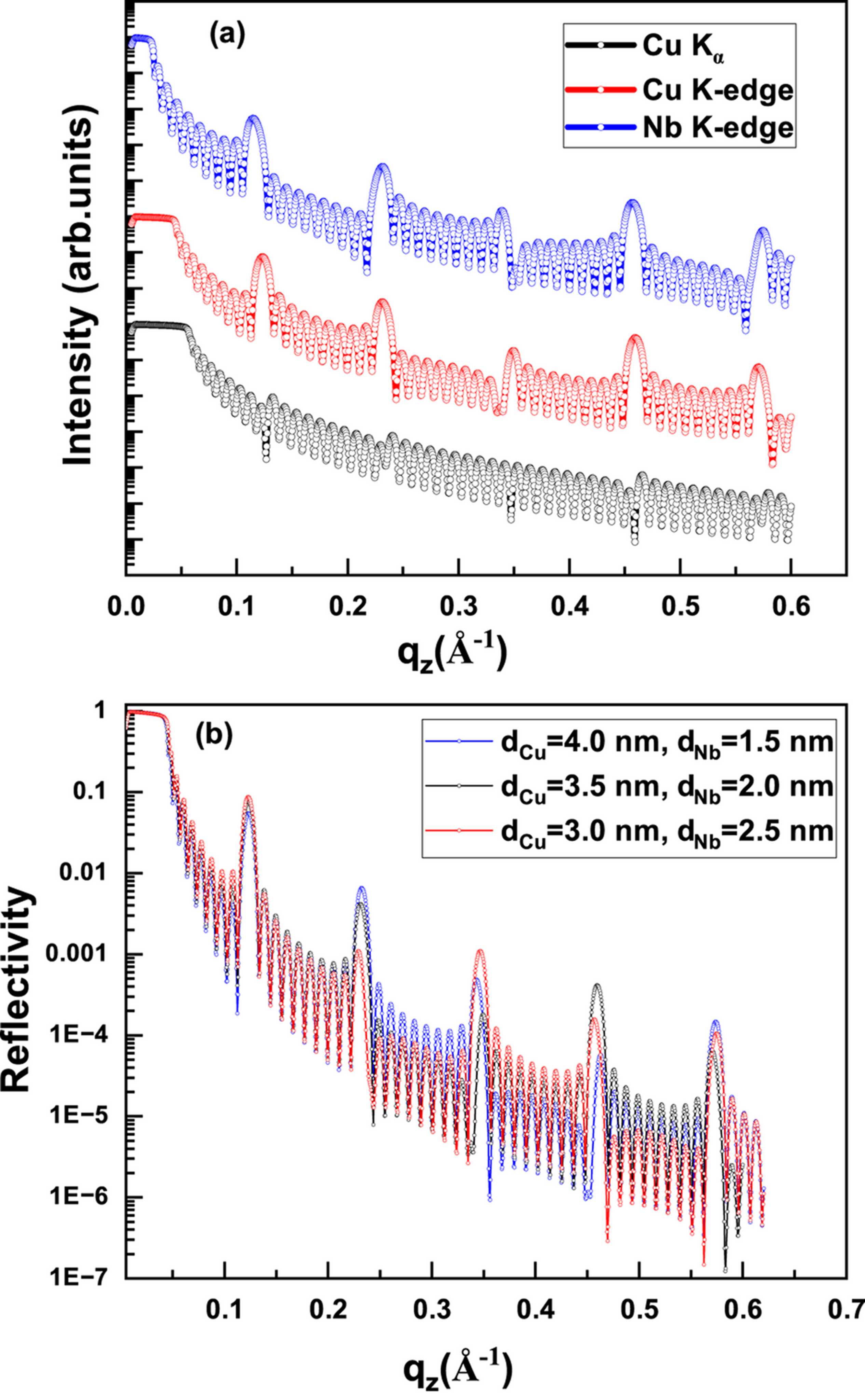

(a) The simulated reflectivity of an Si/[Cu (3.5 nm)/Nb (2.0 nm)]N=10 multilayer at Cu Kα (E = 8048 eV), the Cu K-absorption edge (E = 8980.5 eV) and Nb K-absorption edge (E = 18983.0 eV), where N is the number of layer pairs. The curves are shifted vertically for better clarity. (b) Sensitivity of RXRR to Cu and Nb layer thickness variations at the Cu K-absorption edge.
