Figure 1

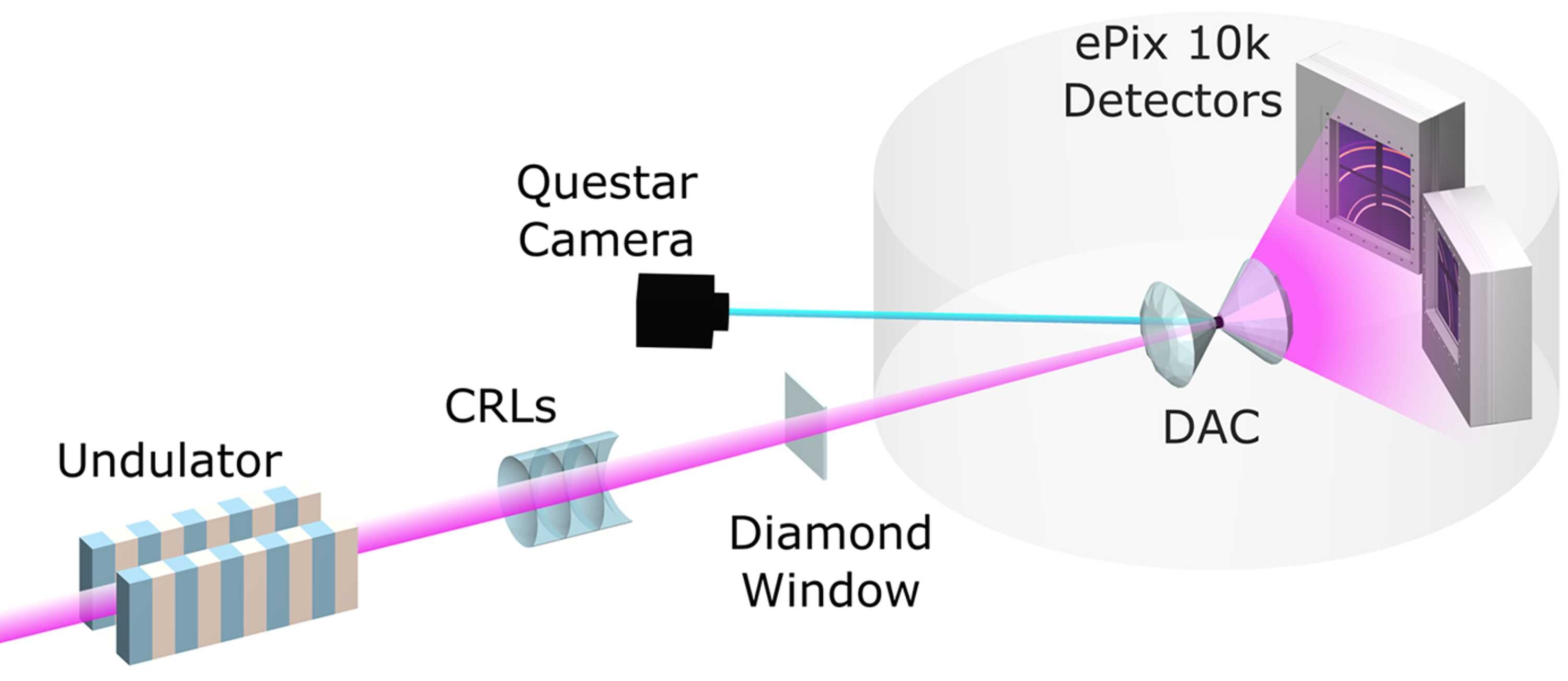

Diagram of the experimental setup in the MEC target chamber. The 16.6 keV XFEL beam is shown in pink and the viewing axis of the Questar in blue. Upstream (left) of the diamond window is in a vacuum and the other components are in air. The transparent gray ring indicates the MEC chamber.
