Figure 2

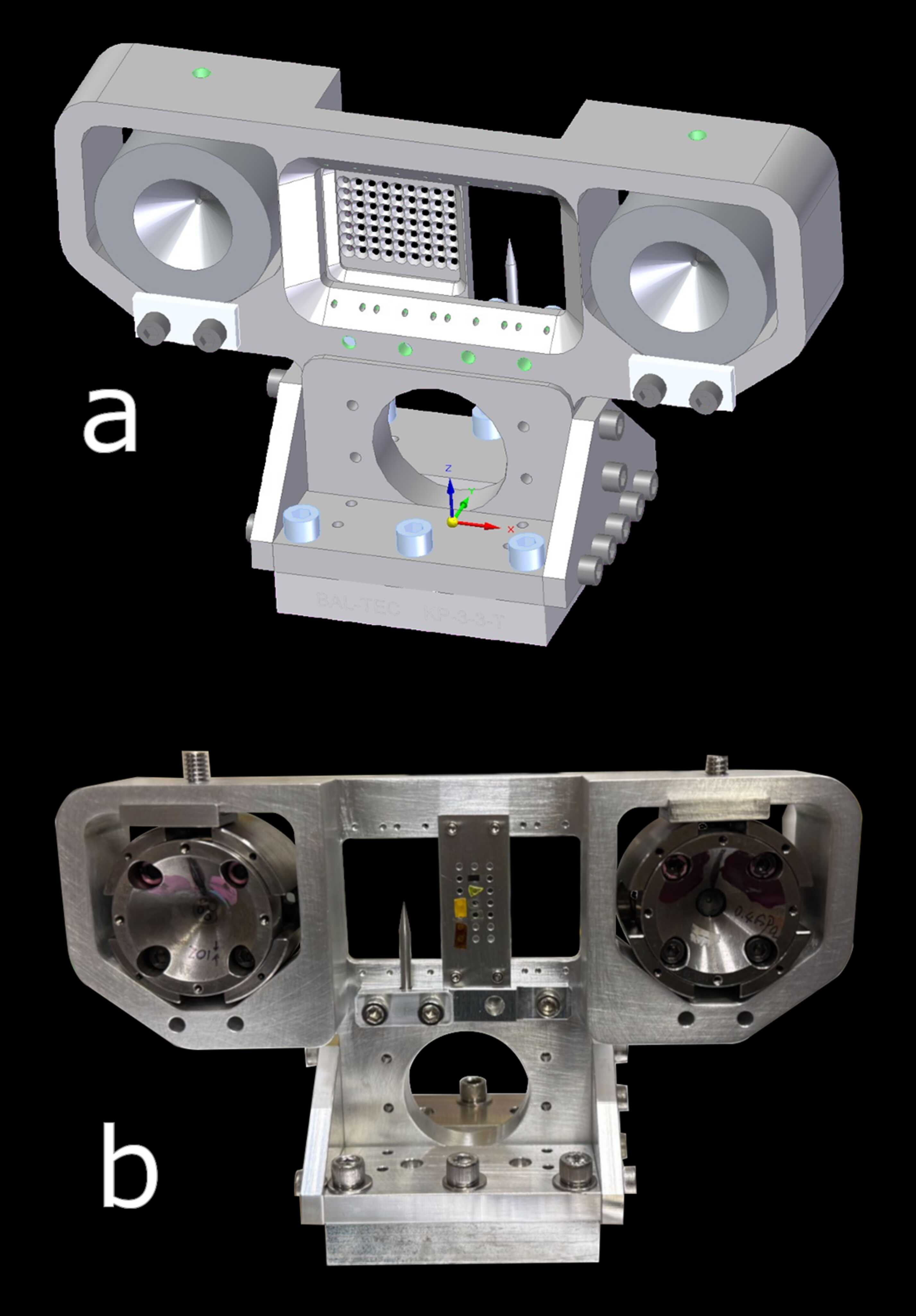

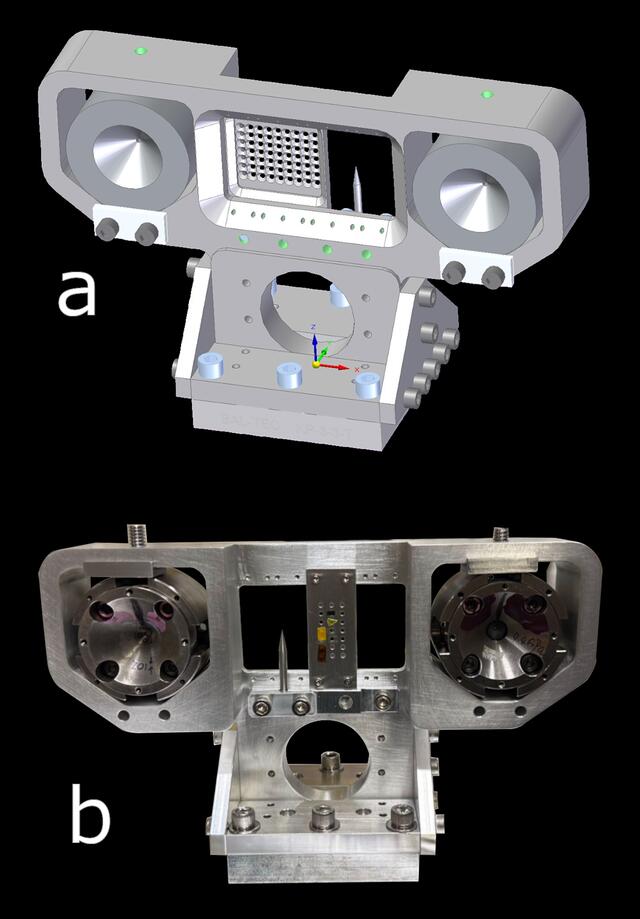

(a) A render of the assembled DAC mount with two DACs installed either side of the alignment card and pin, viewed from the downstream side. The tip of the pin is at the same nominal height and position along the beam axis as the DAC samples. (b) A photo of the holder in use, viewed from the upstream side. The DACs are BX90 type with a 50 mm diameter.
