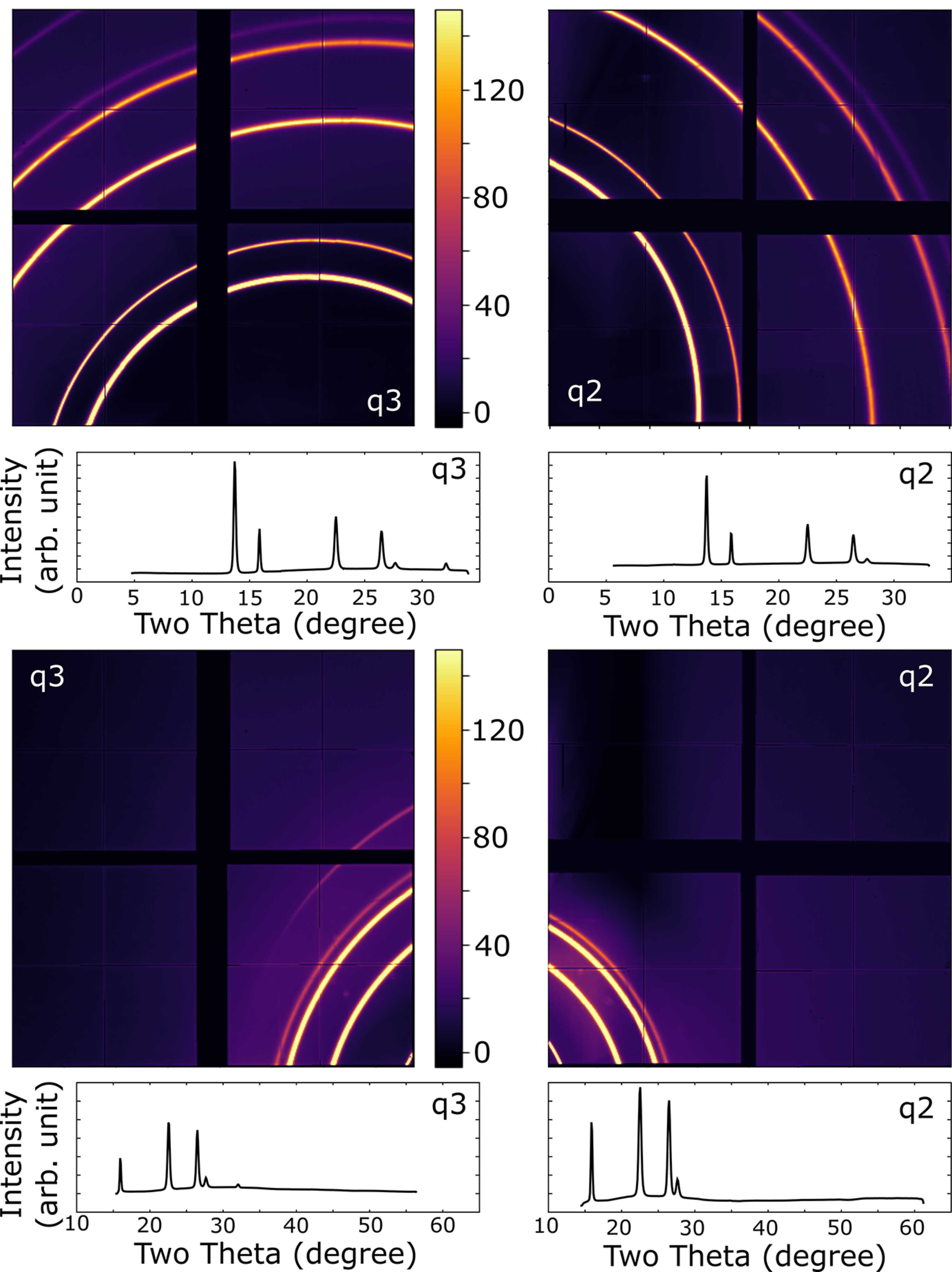

Figure 5
X-ray diffraction of CeO2 at 4 GPa taken at 25% beam intensity showing images and integrated patterns. (Top) Mean of the diffraction patterns from 2705 XFEL pulses, with detectors `q2' and `q3' at 197 and 167 mm from the sample, respectively. These positions were used for the other samples. (Bottom) Mean of the diffraction patterns from 894 pulses, with detectors `q2' and `q3' at 84 and 113 mm from the sample, respectively. This provides an angular coverage beyond what is accessible in most DAC designs. The color scale is the same for all patterns. |
