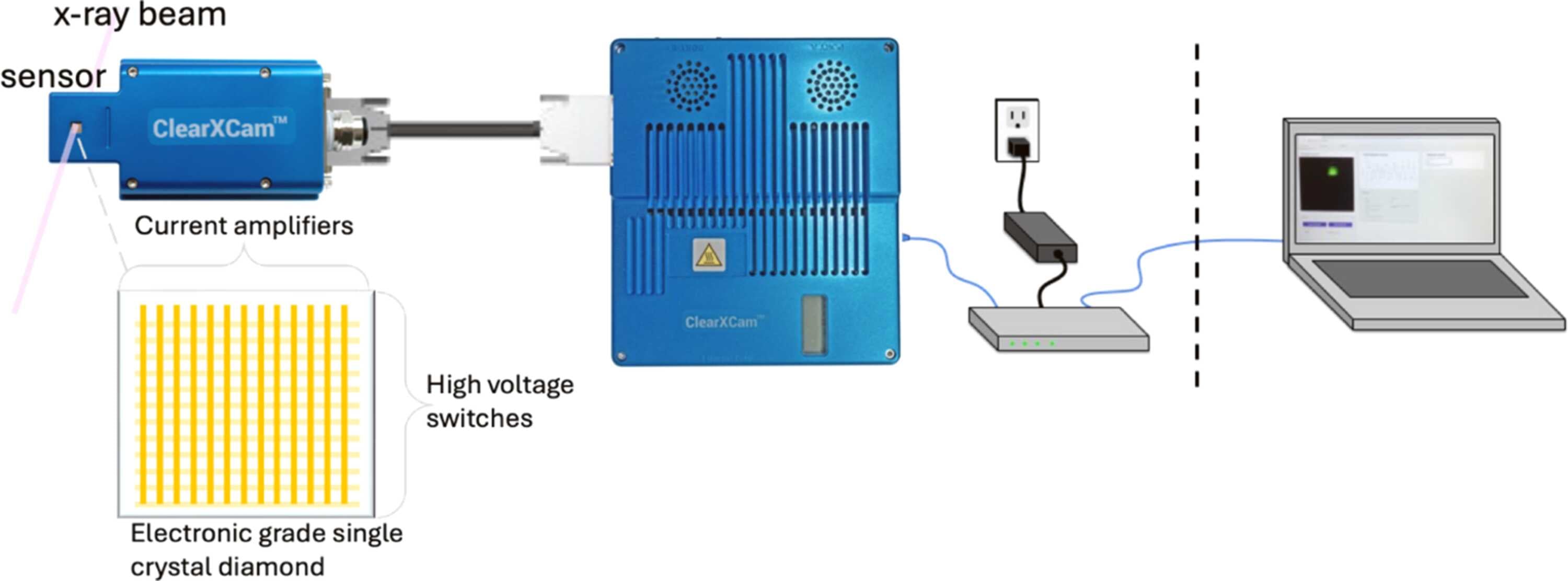

The sensor is an electronic-grade diamond patterned with 48 stripes on both the front and the back sides. Each stripe on one side is connected to an individual current amplifier channel, while the orthogonal stripes on the opposite side are connected to bias switches. These switches are activated sequentially, while current is read continuously, forming a 2D image of the beam. This cycle is repeated to enable video rate image capture. Readout electronics transmit data to a control computer over a network, and the system software includes an API and EPICS support. The sensor is positioned directly in the X-ray beam path, allowing the beam to pass through the diamond while being imaged in real time.
