High-resolution in-beam video rate imaging with the ClearXCam for synchrotron beam­lines

Forgacs, T.M.; Brown, J.; Muller, E.M.; Farquhar, E.R.; Benipal, M.K.; Zaniewski, A.

doi:10.1107/S1600577526001438

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 3

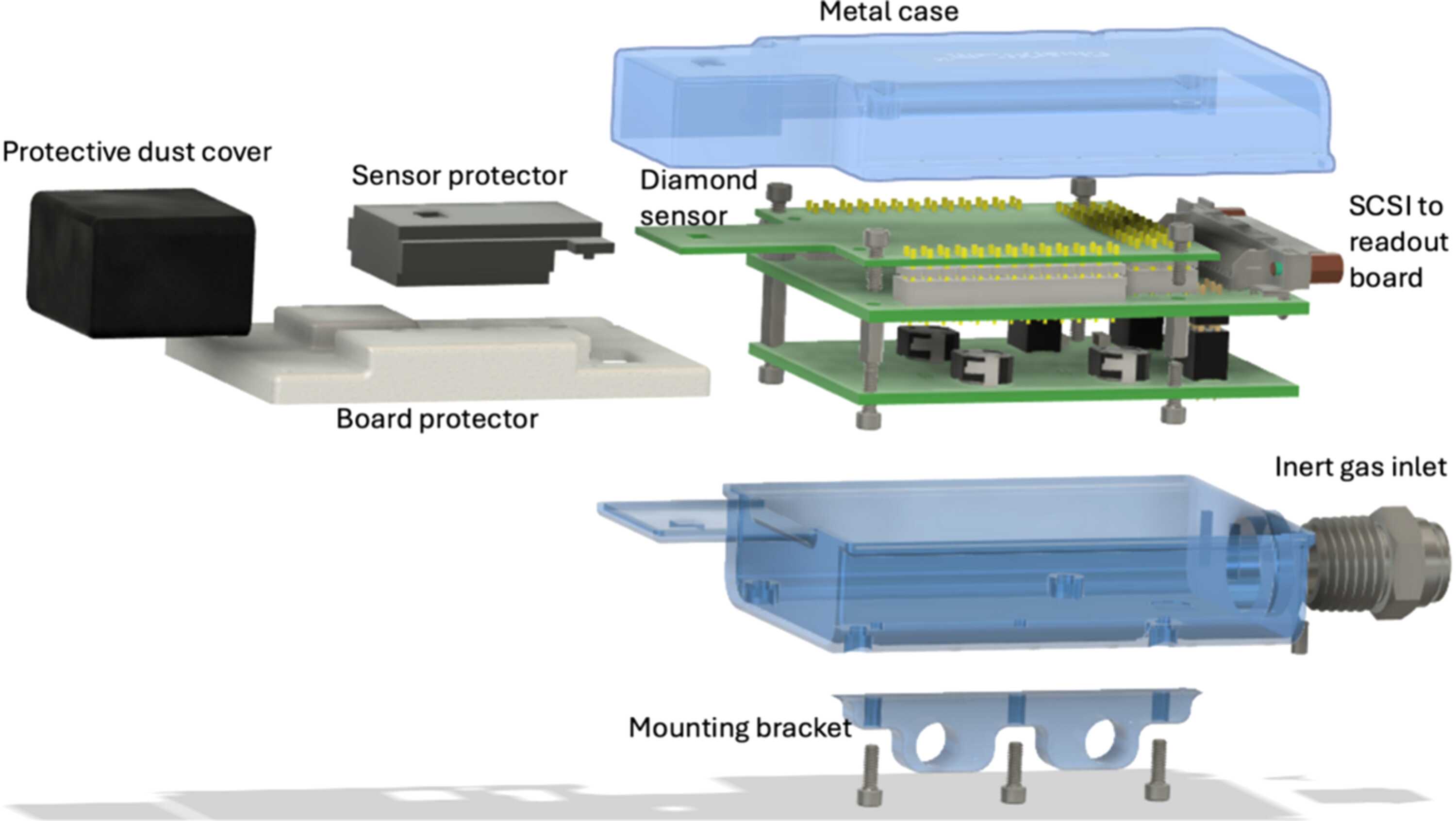

Exploded rendering of the diamond detector module assembly. The diamond sensor is positioned in the `Tee' area on the left. The case includes a gas inlet for optional inert gas flow. The module connects via an SCSI cable to the readout electronics.
