Figure 5

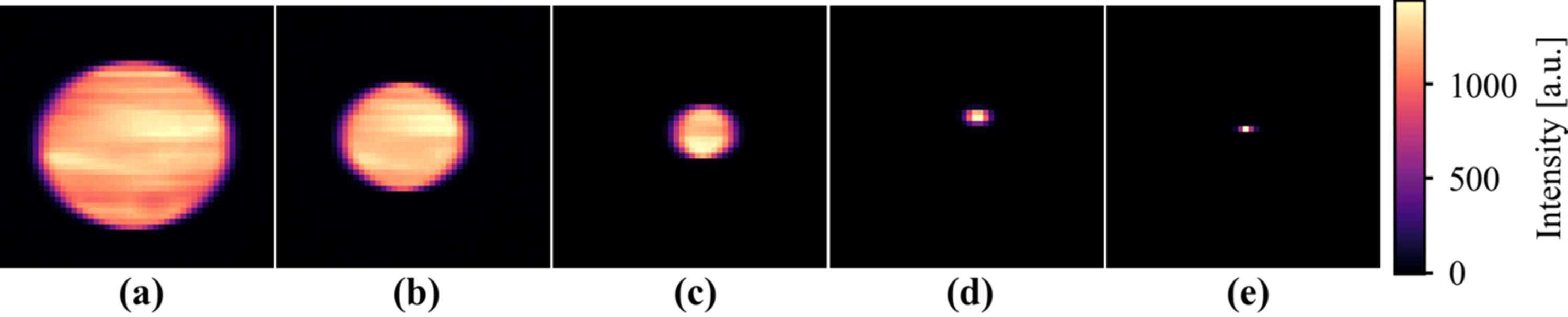

Beam imaging captured by the ClearXCam for beams with varying diameters. (a)–(d) Images from the XFP beam­line using pinholes of (a) 1.50 mm, (b) 1.0 mm, (c) 500 µm, and (d) 150 µm. (e) Image from the XFM beam­line with a ∼2 µm beam. Features seen in parts (a)–(c) are attributed to in-beam structure, likely introduced by either the three-pole wiggler source or upstream beam­line optics.
