Figure 1

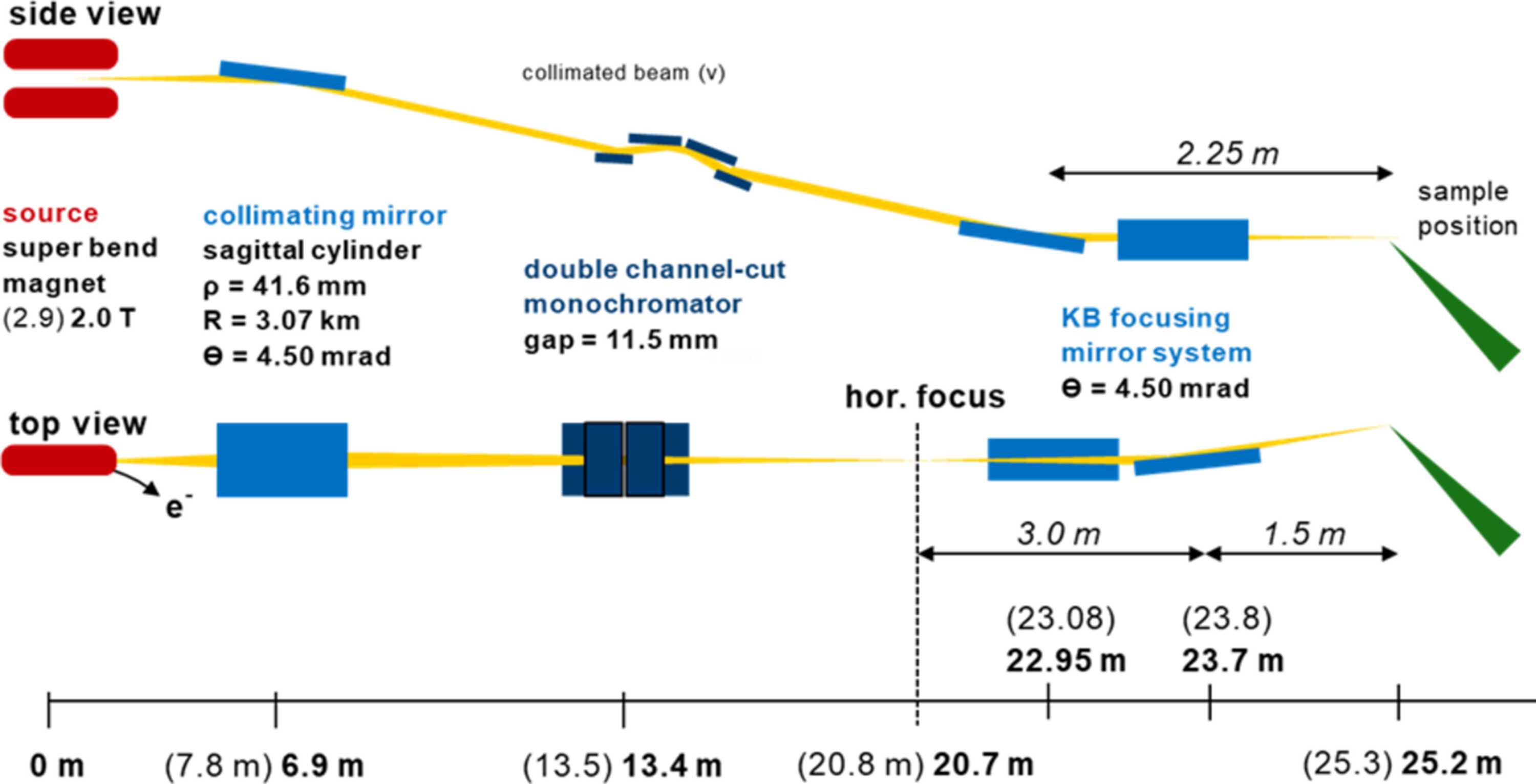

The new optical design of the upgraded X06DA-PXIII beamline. The optical components of the beamline consist of a collimating mirror located 6.9 m from the source, a double channel-cut monochromator at 13.4 m, a secondary source equipped with slits for the horizontal direction at 20.7 m, and a KB mirror system with a vertical working distance of 2.25 m and a horizontal working distance of 1.50 m. The focus point at the sample position is 25.2 m from the source point. The numbers in brackets refer to the values before the upgrade of the storage ring (SLS 1.0).
