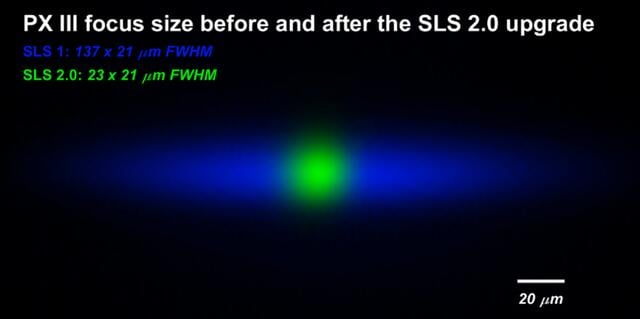

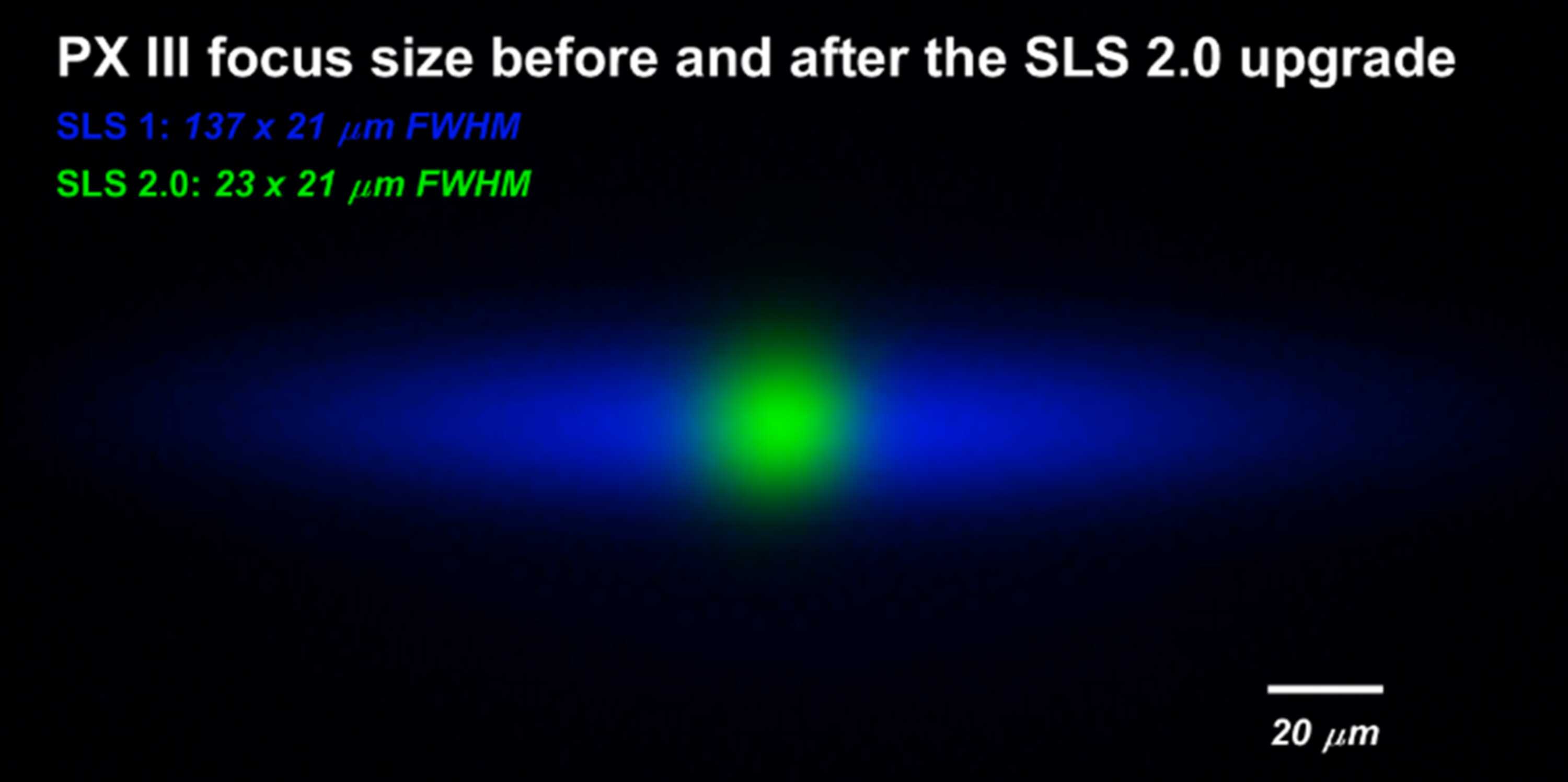

Figure 3
Overlay of the measured focus size of the X06DA-PXIII beamline at the sample position at SLS 1.0 (blue) and SLS 2.0 (green). The dimensions of the focus spots are 137 µm × 21 µm and 23 µm × 21 µm FWHM, respectively.
