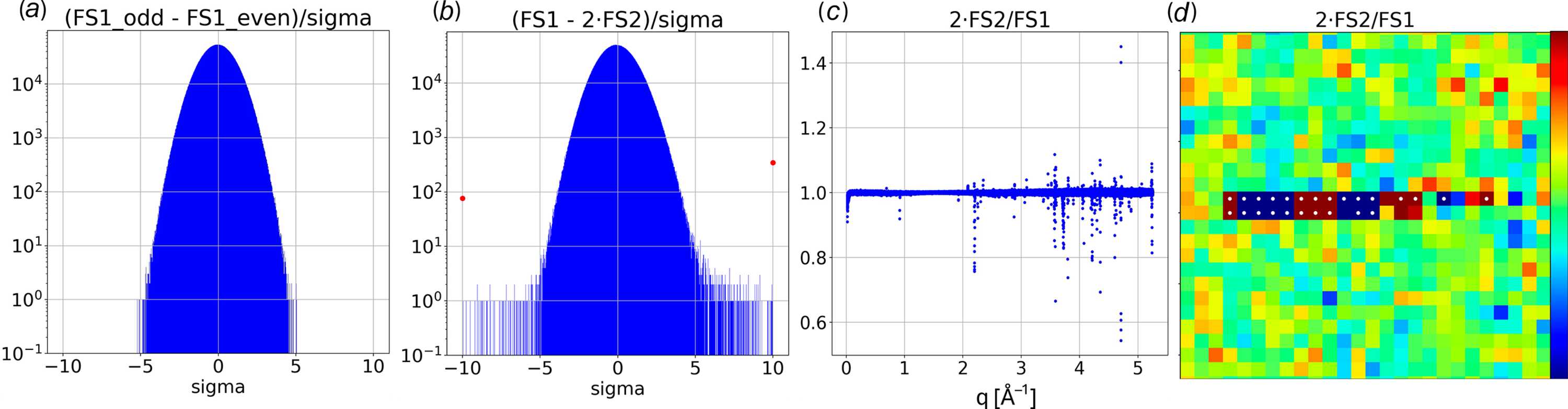

Figure 11
Rayonix detector statistics. (a) Histogram of relative error in sigma units when differencing zinger-free means computed from odd versus even frames in FS1. (b) Histogram of relative error in sigma units for the scaled difference FS1 − 2·FS2. (c) Scatter chart of 2·FS2/FS1 as a function of q identifies numerous outlier pixels. (d) Zoomed image of 2·FS2/FS1 showing a cluster of outlier pixels found in the upper left corner of the detector. The image color code spans ±1% (dark red to dark blue).
