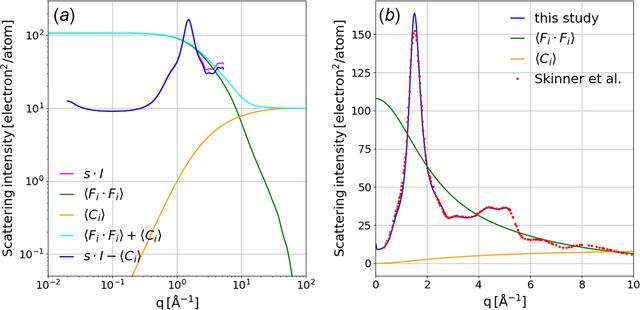

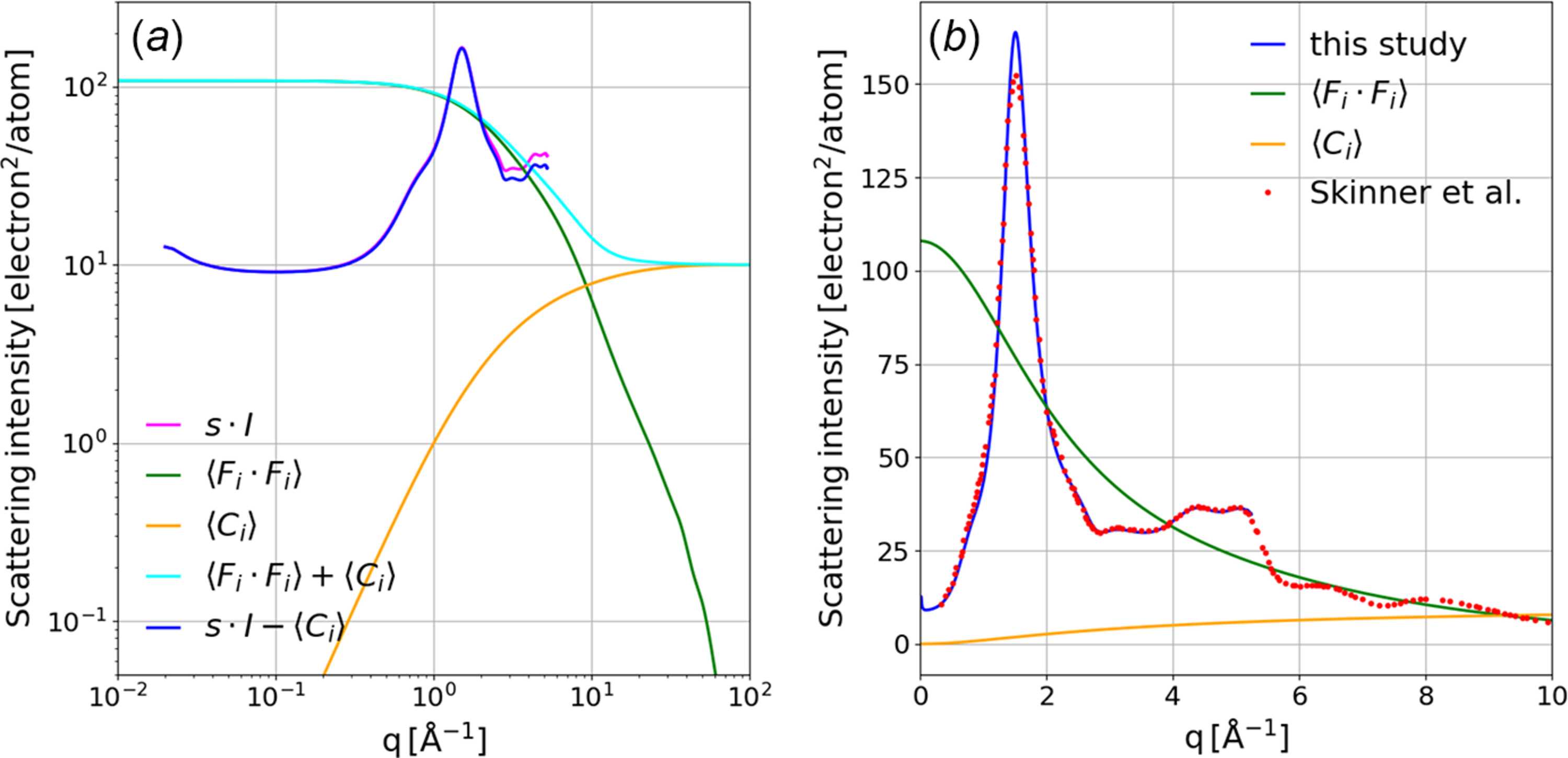

Figure 16
Fused silica scattering. (a) Log–log chart of theoretical (atomic) and measured scattering for fused silica. The quantities in brackets represent stoichiometrically weighted means. The magenta curve, sI, has been scaled (see text) to put I(q) on the same absolute scale as the cyan curve, 〈Fi·Fi〉 + 〈Ci〉. The blue curve corresponds to Ic (= sI − 〈Ci〉), the Compton-corrected coherent scattering. (b) Ic overlaid with data extracted from Fig. 1 of Skinner et al. (2012View full citation).
