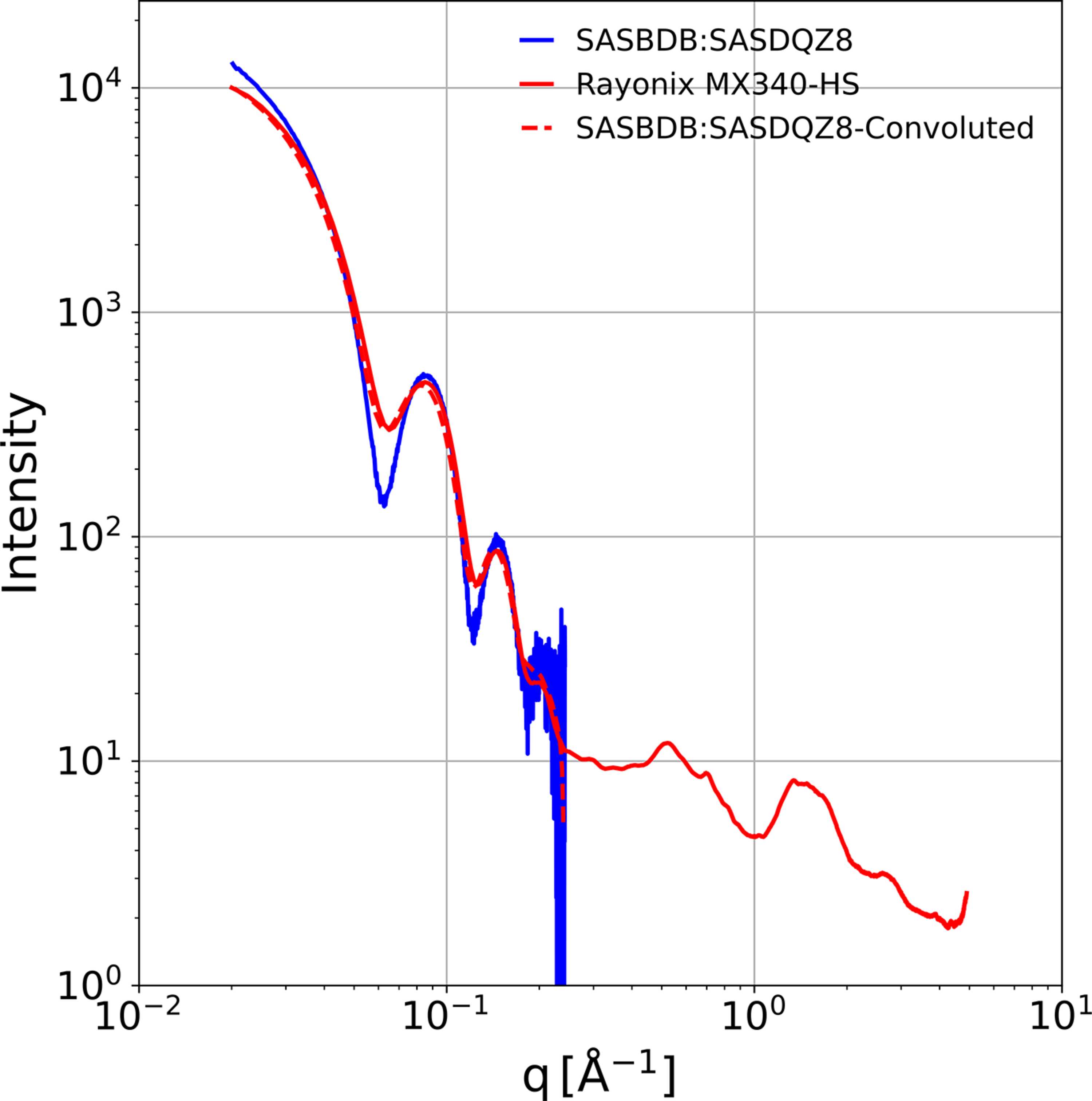

Figure 17
Apoferritin scattering. SAXS scattering (SASBDB code: SASDQZ8) recorded by XFEL (blue) (Blanchet et al., 2023View full citation), SAXS/WAXS scattering recorded with the Rayonix detector on the BioCARS time-resolved beamline (red), and convolution of our point-spread function with the XFEL scattering curve (red dashed line).
