Figure 7

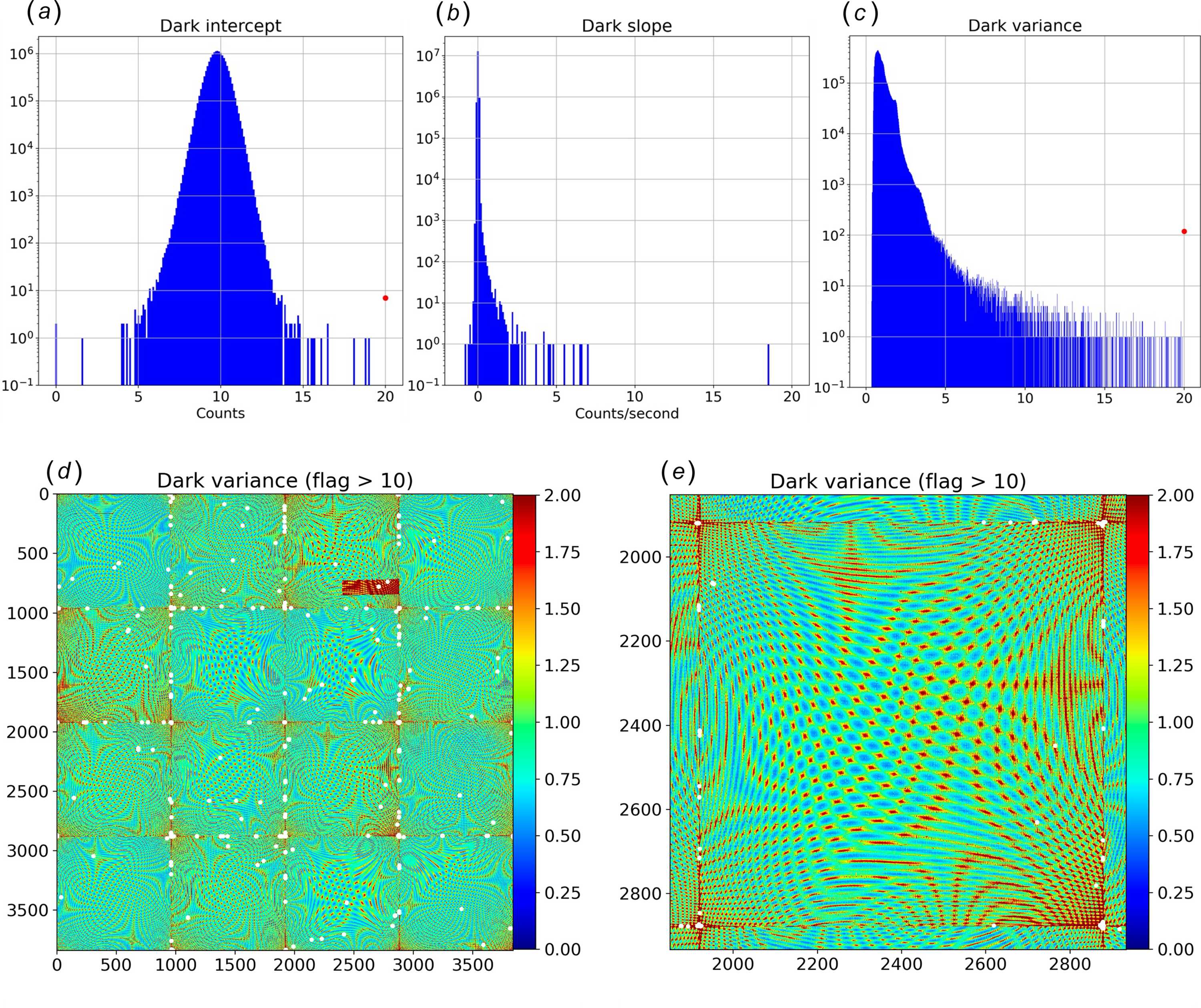

Dark image analysis. Panels (a), (b) and (c) show histograms of Dint, Dslope and DV, respectively, where the x-axis corresponds to the indicated quantity. (d) Dark variance DV image. White dots flag high variance pixels (DV > 10). (e) The zoomed image corresponds to the CCD module under which the beamstop is placed.
