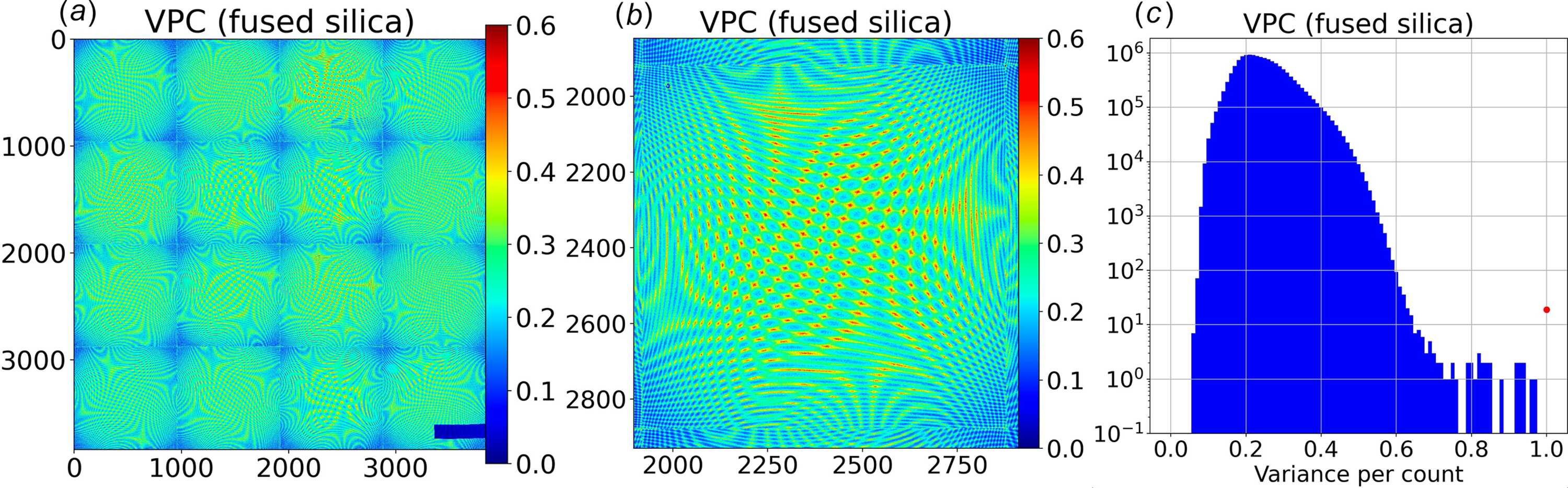

Figure 9
Variance per count VPC. (a) Full image of VPC. The lower aberrant ADC channel shows up more dramatically in the VPC statistic while the upper one shows up more dramatically in the DV statistic of Fig. 7[link](d). (b) Zoomed-in image of the CCD module above which the beamstop is located (near upper left corner). (c) Histogram of VPC with pixels from two ill-behaved ADC channels excluded.
