Reducing acquisition time and radiation damage: data-driven subsampling for spectro-microscopy

Meier, M.; Lazzarino, L.; Shustin, B.; Al Daas, H.; Quinn, P.

doi:10.1107/S1600577526006491

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

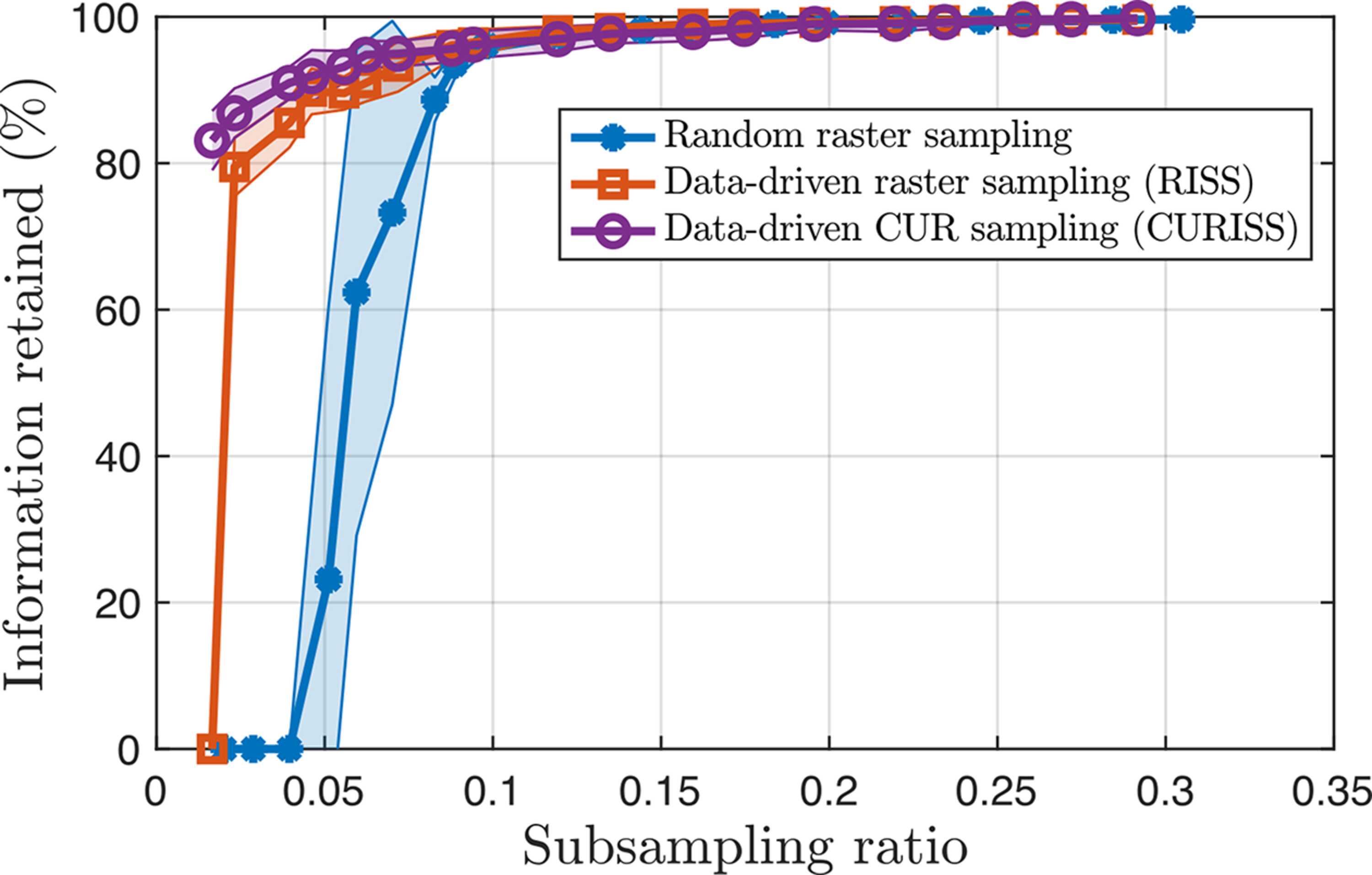

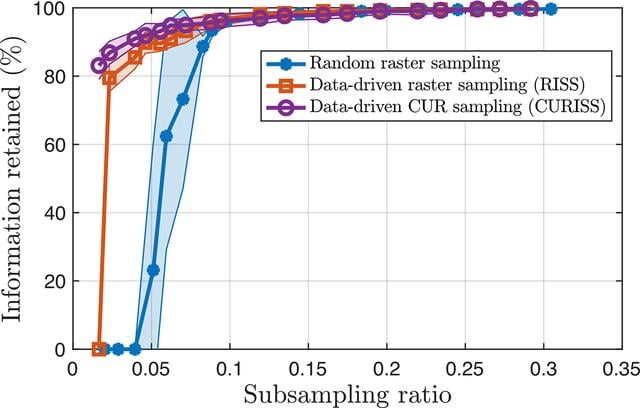

Figure 4
The amount of information retained with different subsampling strategies. The information measure is (1 − ||D − D_completed||_F) / (1 − ||D − D_optimal||_F) × 100%, where $[{\bf{D}}_{{\rm completed}}]$ is the completed dataset (with filled in entries) and $[{\bf{D}}_{{\rm optimal}}]$ is the best rank-10 approximation to $[{\bf{D}}]$ according to the Eckart–Young–Mirsky theorem (Eckart & Young, 1936

), i.e. truncated rank-10 singular value decomposition (SVD). Solid lines show the mean across trials, while shaded bands represent ±1 standard deviation. The dataset is DS1 from Townsend et al. (2022

). For the raster sampling approaches, completion is done with LoopedASD, and the data shown are the average of ten iterations. For the CUR sampling approaches, the CUR decomposition is the completion and the data shown are the average of 100 iterations.
