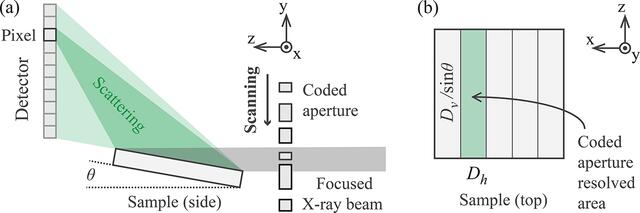

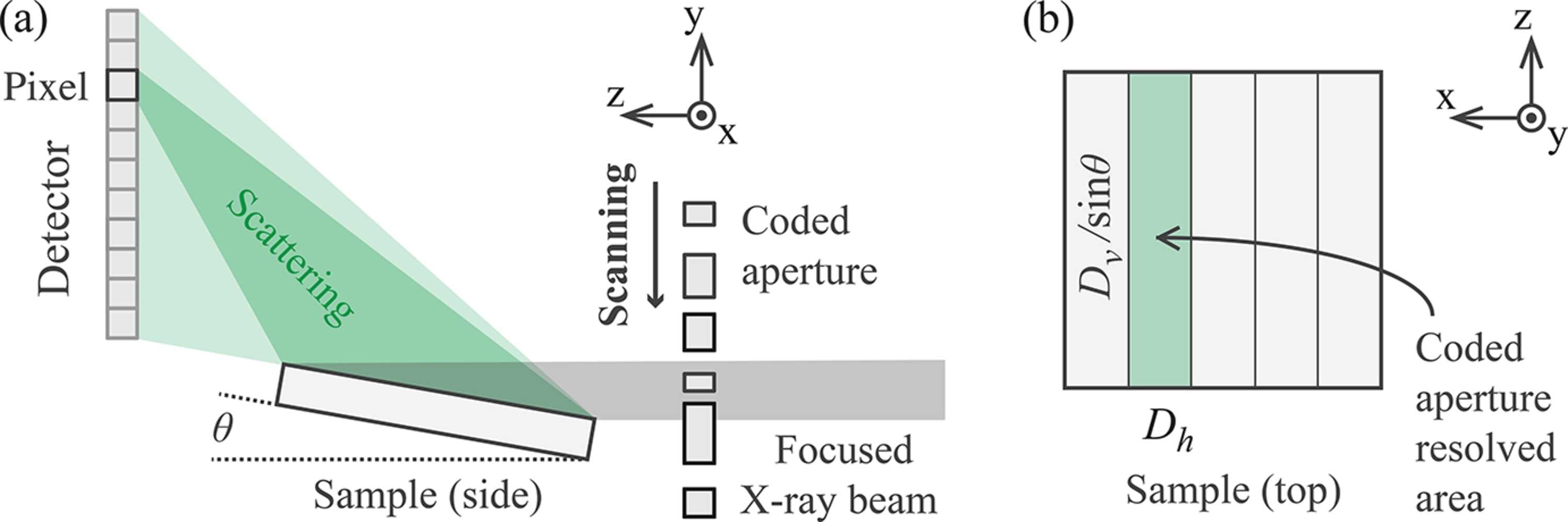

Figure 1
(a) Schematic of the SI-GID setup. A focused X-ray beam illuminates a sample at a grazing-incidence angle, with scattered signals recorded by a 2D pixel detector (x-y plane). A coded aperture structures the beam along the y-axis, and scanning in this direction encodes scattering signals for local sample variation along the z-axis. (b) Top view of the sample and the X-ray footprint (green), to be resolved in the z-axis via SI-GID.
