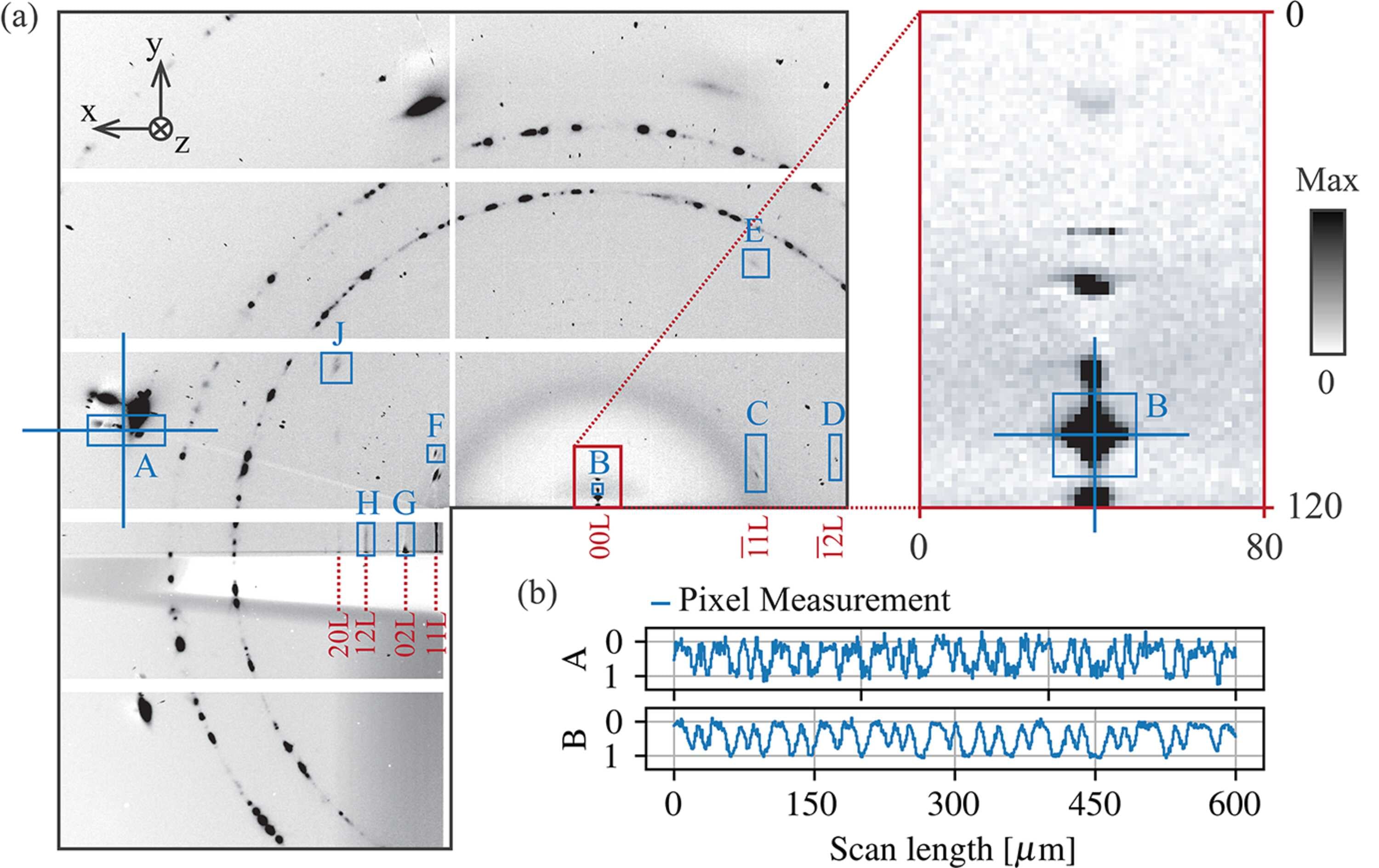

Figure 3
(a) Representative image (average of collected frames) recorded using a Pilatus800k detector. The analyzed peaks are labeled in blue, ranging from A to J. For every detector pixel, irrespective of scattering intensity, the corresponding spatial distribution within the sample can be reconstructed. Depending on the application, either the integrated ROI intensity or a single detector pixel can be used; in this work, detector pixels were used. (b) Measured intensities corresponding to detector pixels A and B obtained by scanning the coded aperture over a range of 600 µm.
