Ultrafast time-resolved X-ray absorption spectroscopy at FemtoMAX beamline

Pham, V.-T.; Kubicek, K.; Byungnam, A.; Ekström, C.; Kroon, D.; Nurekeyev, Z.; Sekkal, M.; Eriksson, A.; Hwang, H.; Zymaková, A.; Nguyen, T.B.; Ha-Thi, M.-H.; Vu, X.T.; Uemura, Y.; Larsson, J.; Bressler, C.; Uhlig, J.

doi:10.1107/S1600577526006363

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 5

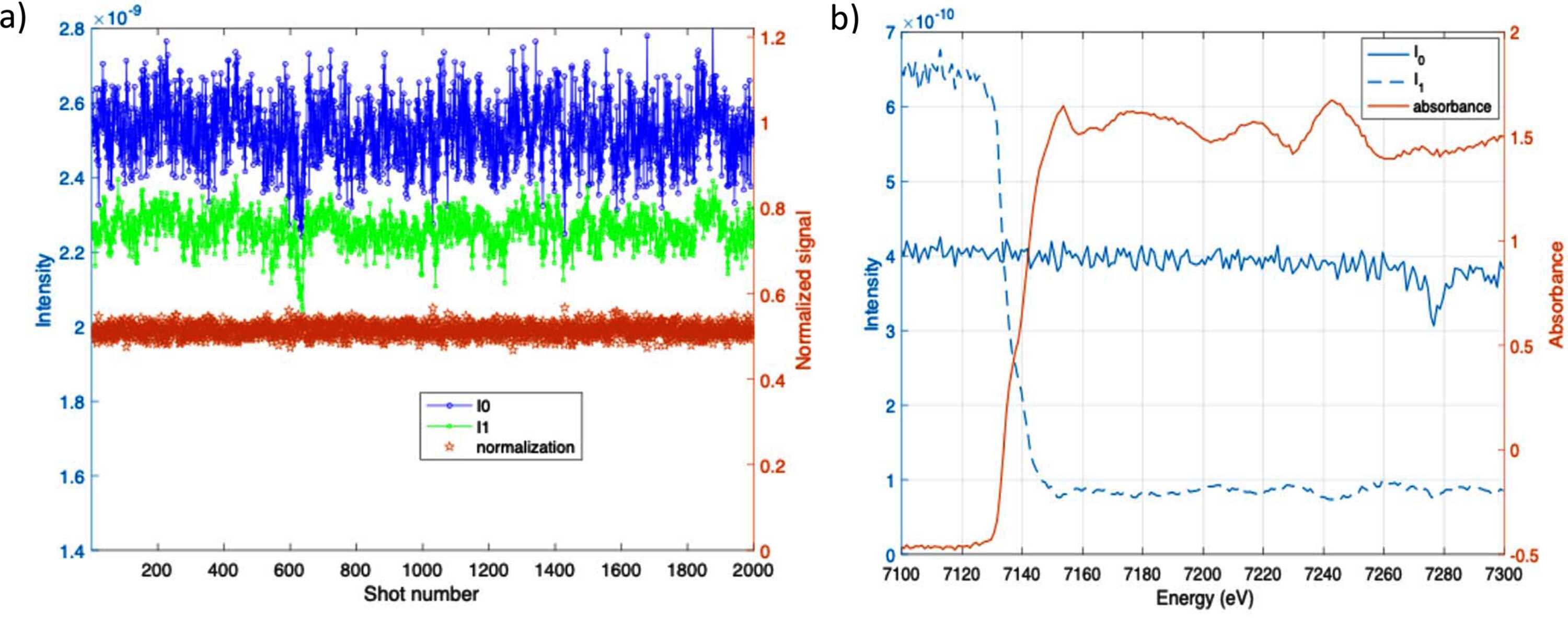

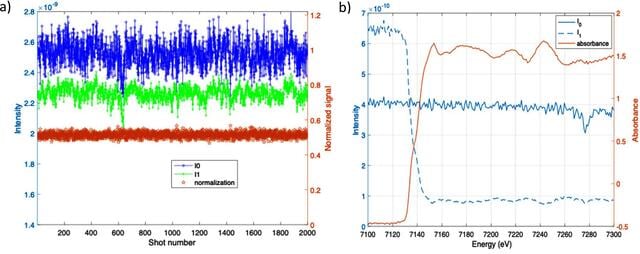

(a) Correlation between I₀ and I₁. The left y-axis shows the intensity of I₀ (blue) and I₁(green) over time; the right y-axis (red) shows the ratio of I₁ and I₀. (b Importance of I₀ in the extraction of the absorption spectrum of Fe foil. The left y-axis shows the intensity of I₀ (solid line) and that of I₁ (dashed line); the right y-axis shows the absorbance of Fe foil which is calculated by abs = ln(I₀/I₁). We note that each Fe foil absorption spectrum is contributed to by 50 X-ray pulses.
