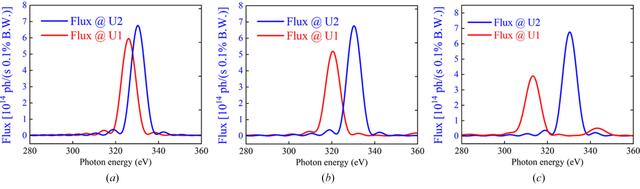

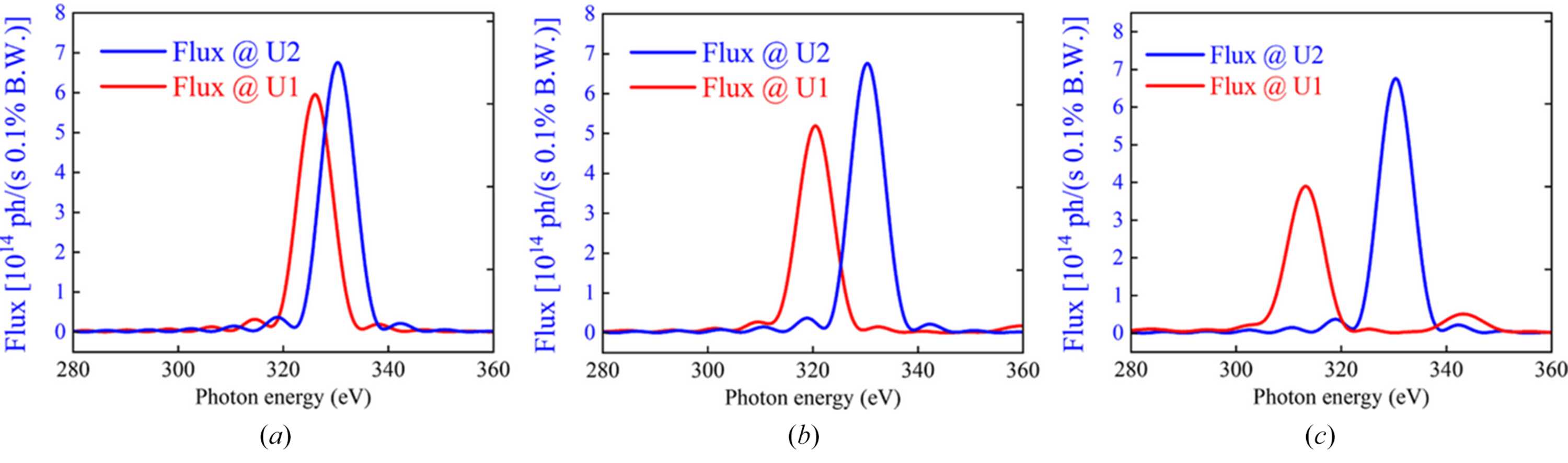

Figure 4
The radiation spectrum modulated by coils (3 A in U2 blue line) with different period ratio: (a) m = 6, the modulation is not enough to be used in the polarization switching, (b) m = 7, enough energy shift, (c) m = 10, energy shift is bigger than that for m = 7.
