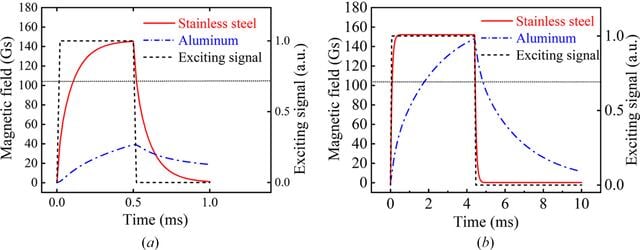

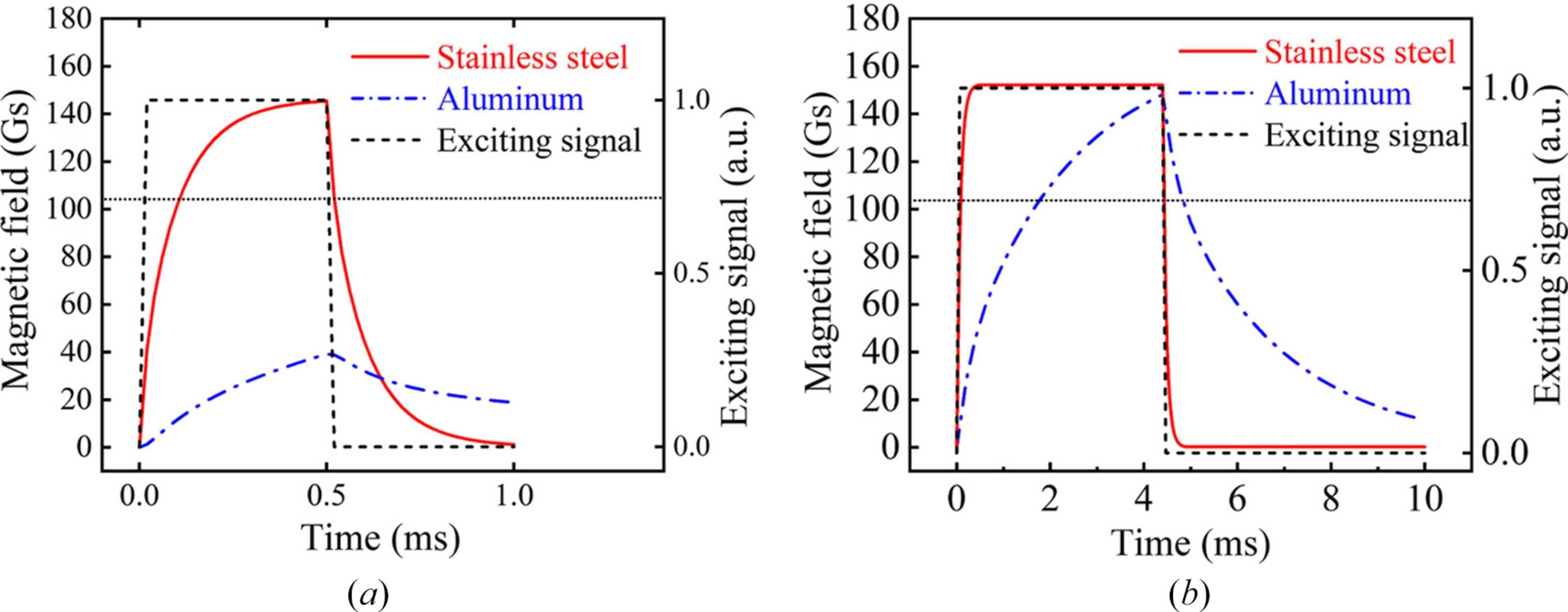

Figure 5
The square wave exciting signal (black dashed line) and the response of the magnetic field on the beam orbit for stainless steel vacuum chamber (red solid line) and aluminium vacuum chamber (blue dash-dotted line) with actual shape using 10-time-period coils. The periods of the square wave exciting signal are (a) 1 ms and (b) 10 ms.
