The LIQUID endstation for in situ spectro-electrochemical studies on energy materials @ BACH beamline

Napal Azcona, I.; Salvador, F.; Liang, Z.; Cherkashinin, G.; Sosič, M.; Benedetti, D.; Betz-Güttner, E.; Dal Zilio, S.; Fondacaro, A.; Bondino, F.; Píš, I.; Lazzarino, M.; Nappini, S.; Magnano, E.

doi:10.1107/S1600577526005825

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

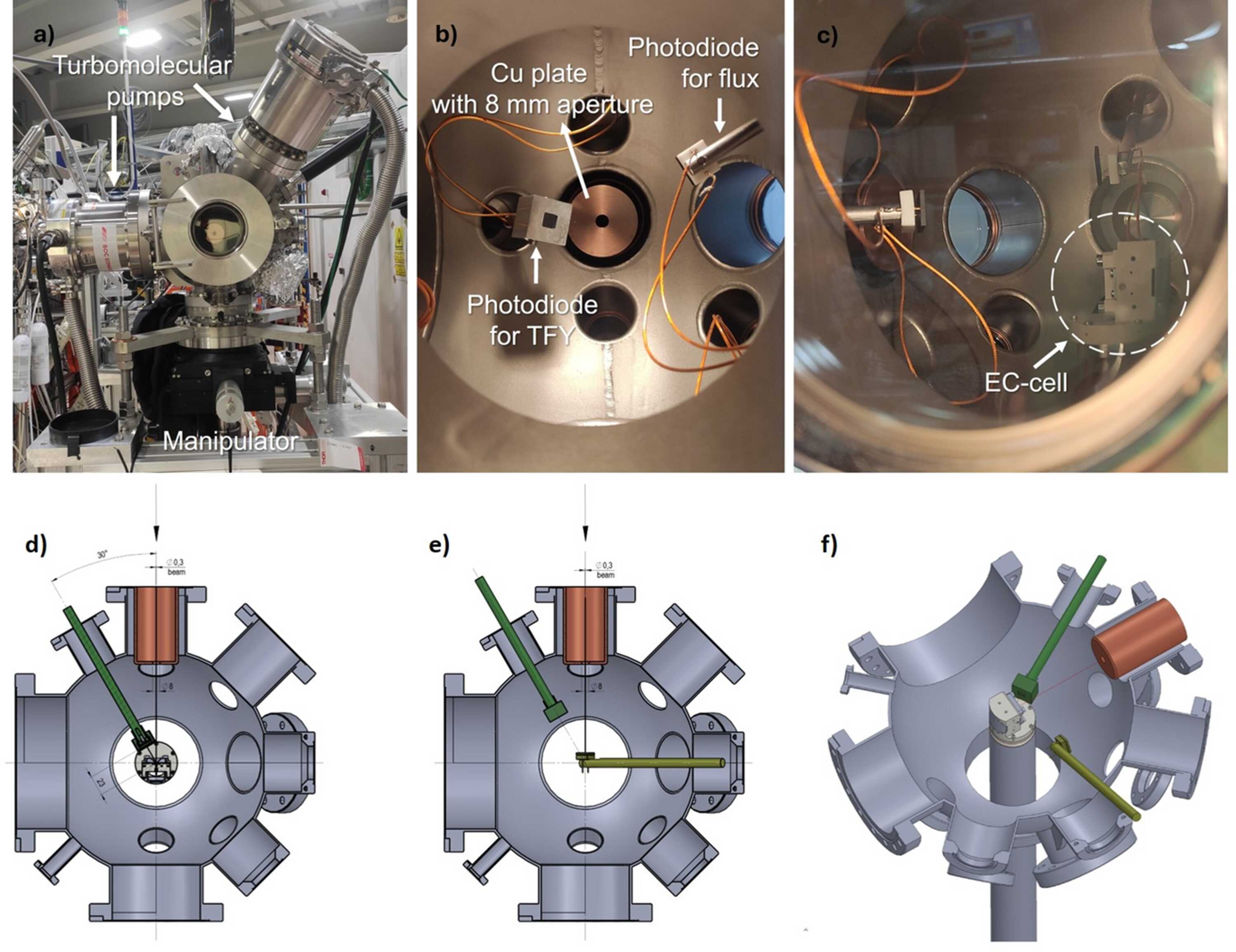

Figure 3
Photograph of the LIQUID endstation: (a) two turbomolecular pumps are mounted on top and lateral flanges; (b, c) internal views of the endstation. The two photodiodes are mounted on linear translators, allowing precise positioning of the measurement photodiode relative to the cell and enabling the flux-monitoring photodiode to be retracted during cell use. Adapted from Napal Azcona (2025

). Technical drawings of the photodiode-beam configurations: (d) measurement photodiode in the acquisition position; (e) flux-monitoring photodiode in the acquisition position; (f) 3D internal view of the endstation.
