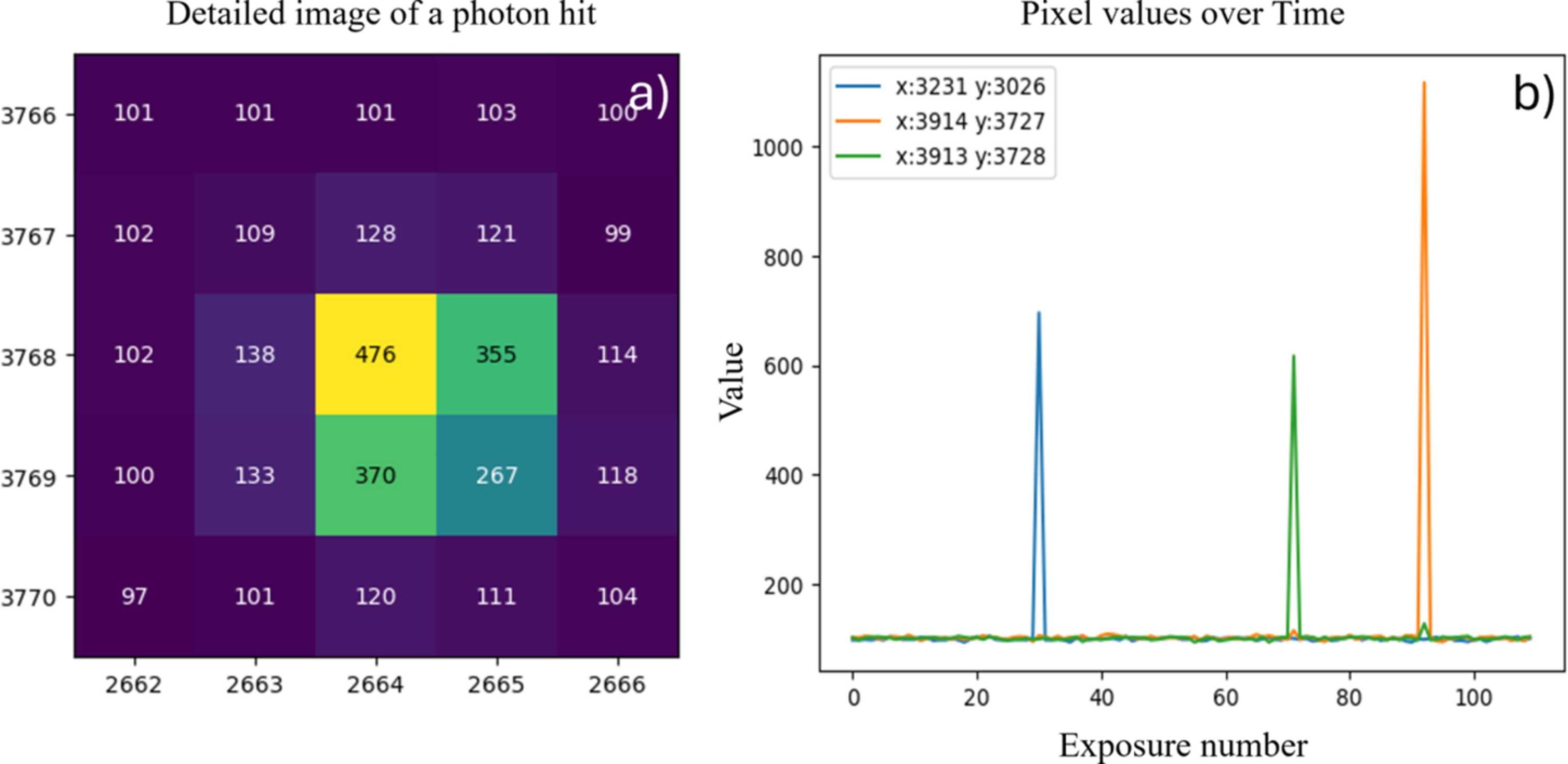

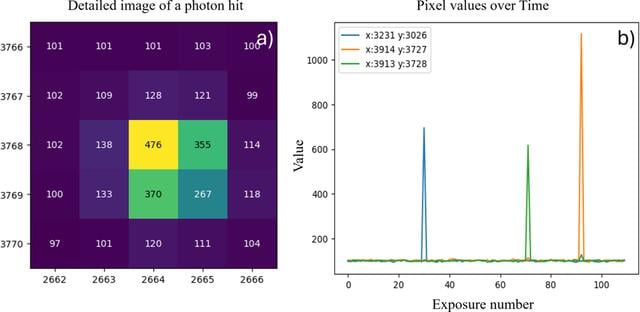

(a) A fraction of the raw sCMOS detetctor area, showing pixel values of a single photon hit. The x and y coordinates are the sensor position. This plot shows the main position at (2664, 3768) with charge sharing to the adjacent pixels. (b) Raw sCMOS values of three pixels over many exposures, where each exposure is made for a single X-ray pulse. The photon appears to have hit the x:3914 y:3727 pixel (orange trace) quite centrally as it has shared little charge with its neighbours. The other two pixels have lower peaks as more charge was shared with neighbours. Charge sharing is visible as the small peak (green) of the x:3913 y:3728 pixel in exposure/frame 92. Note that the green and orange traces are diagonal neighbours. |
