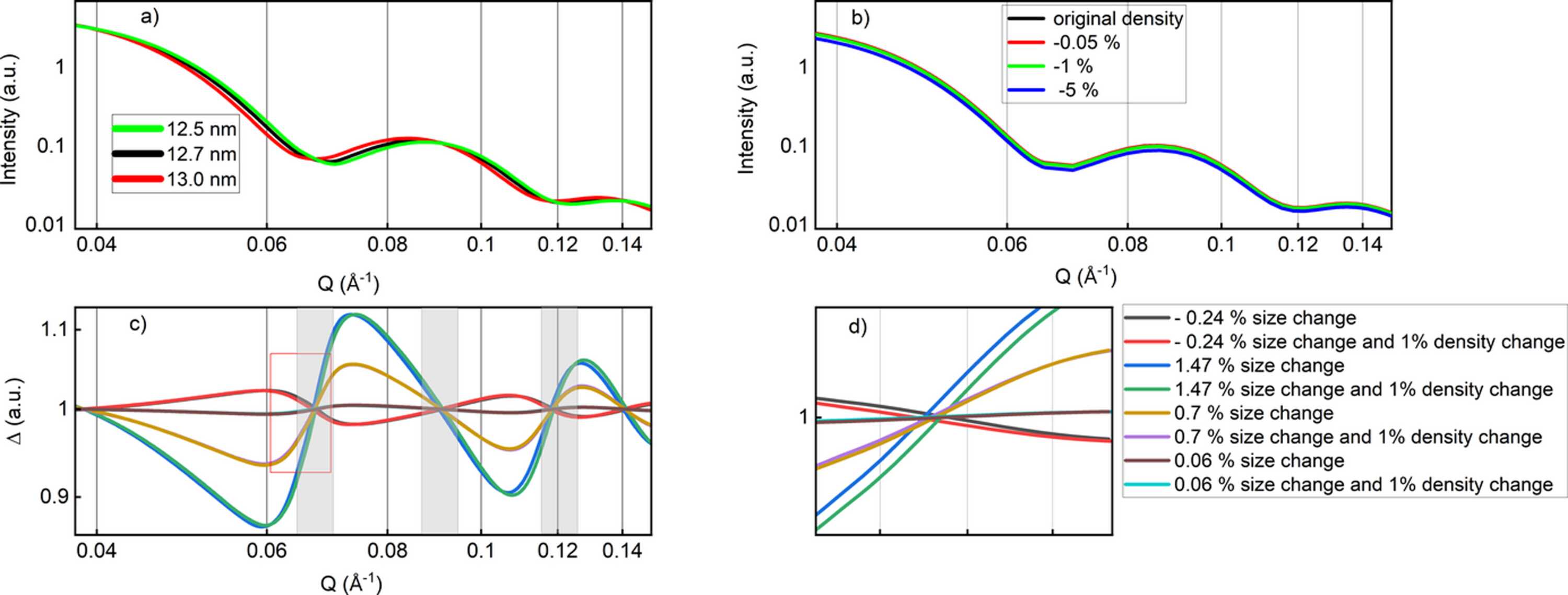

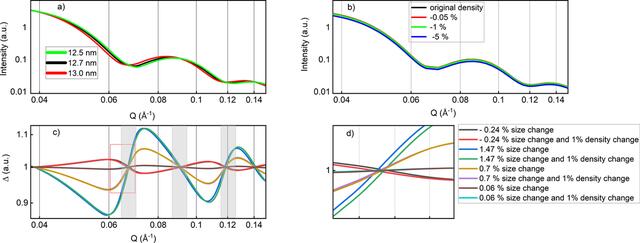

Figure 6
SAXS pattern simulations using SasVIEW. (a) Curves for three different Au nanoparticle diameters. (b) Curves for four different Au nanoparticle densities. (c) Signal division of the simulated SAXS curves for various particle size variations. A positive sign means the particles are larger than the reference and a negative sign means the particles are smaller. Particle size change is the factor that contributes the most to the curve shape. (d) A magnification of the region in panel (c) marked by a red rectangle, showing that particle density changes at constant volume only affect the intensity shift and move the curves vertically.
