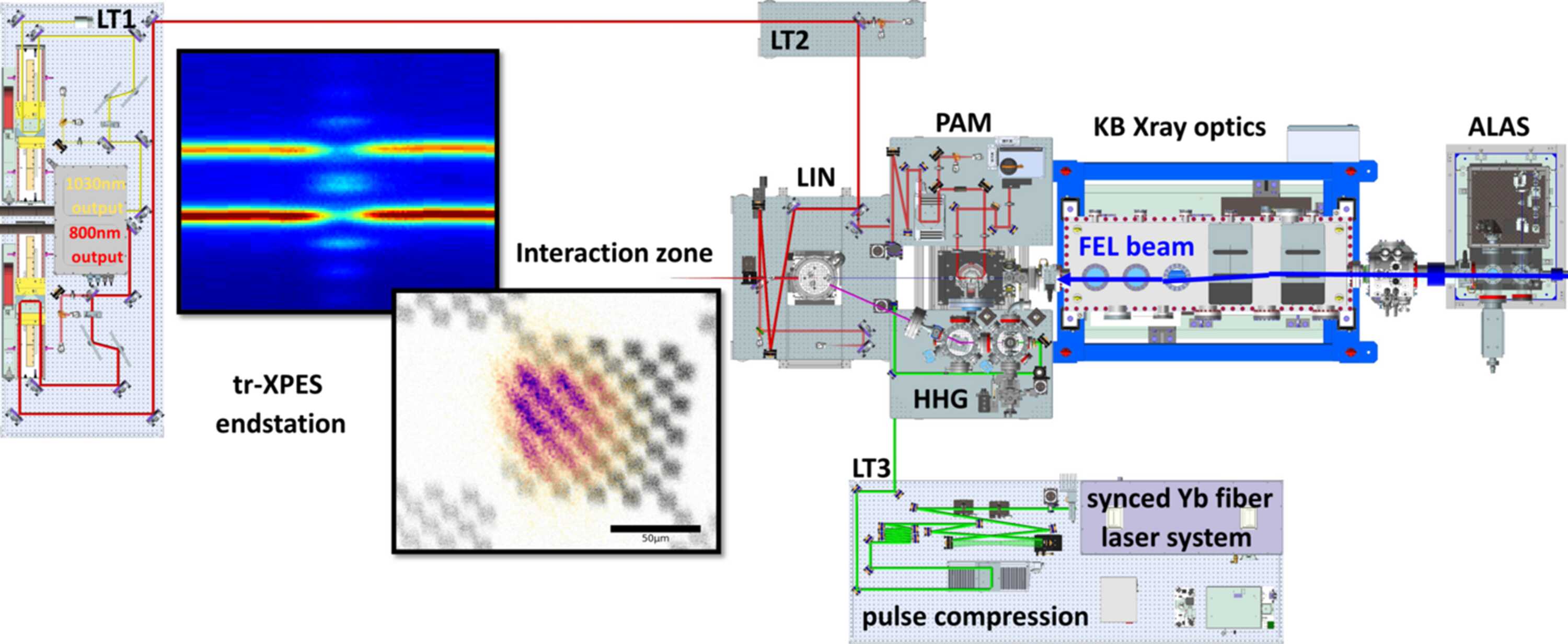

Figure 1
Top-view schematic of the SXP mechanical model showing the major permanent beamline components (experimental endstation not included). Exemplary 800 nm and 1030 nm optical-laser beam paths are indicated for the central pump–probe laser (not shown; entering from the left on laser table LT1) and the stand-alone Yb-fiber amplifier system on laser table LT3 (bottom). The XFEL beam enters from the right, traverses the alignment laser system (ALAS) and the X-ray optics chamber, and is subsequently routed through the photon arrival time monitor (PAM) and the laser in-coupling unit (LIN) before being focused into the interaction zone.
