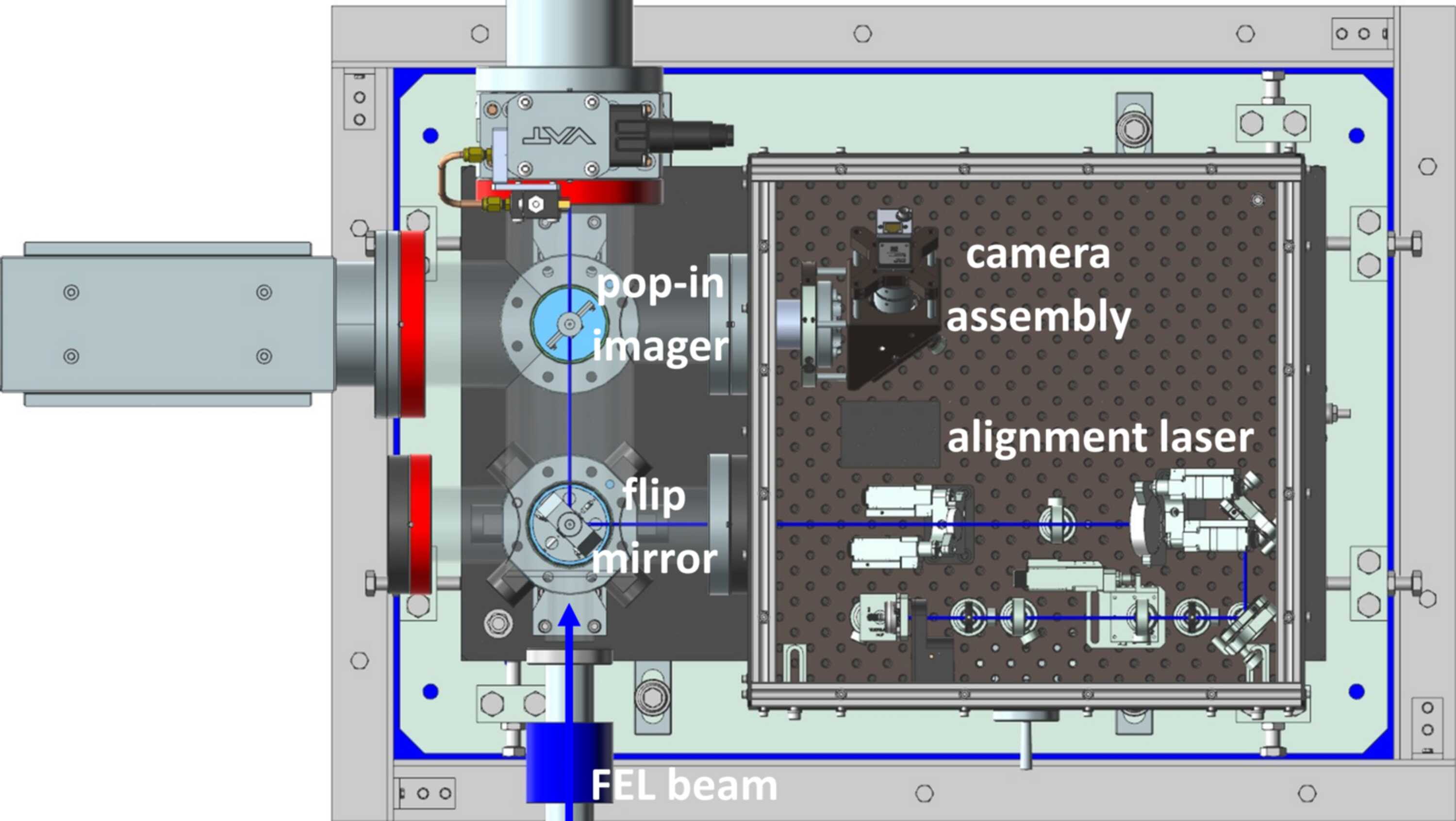

Figure 2
Top view of the mechanical layout of the alignment laser system (ALAS) positioned upstream of the KB X-ray optics chamber. The XFEL beam enters from below (CF 40 flange) and traverses two four-way-cross sections with motorized manipulators: A flip mirror injects an optical alignment laser parallel to the XFEL path, while pop-in fluorescent screens can be inserted to monitor both beams.
