Figure 3

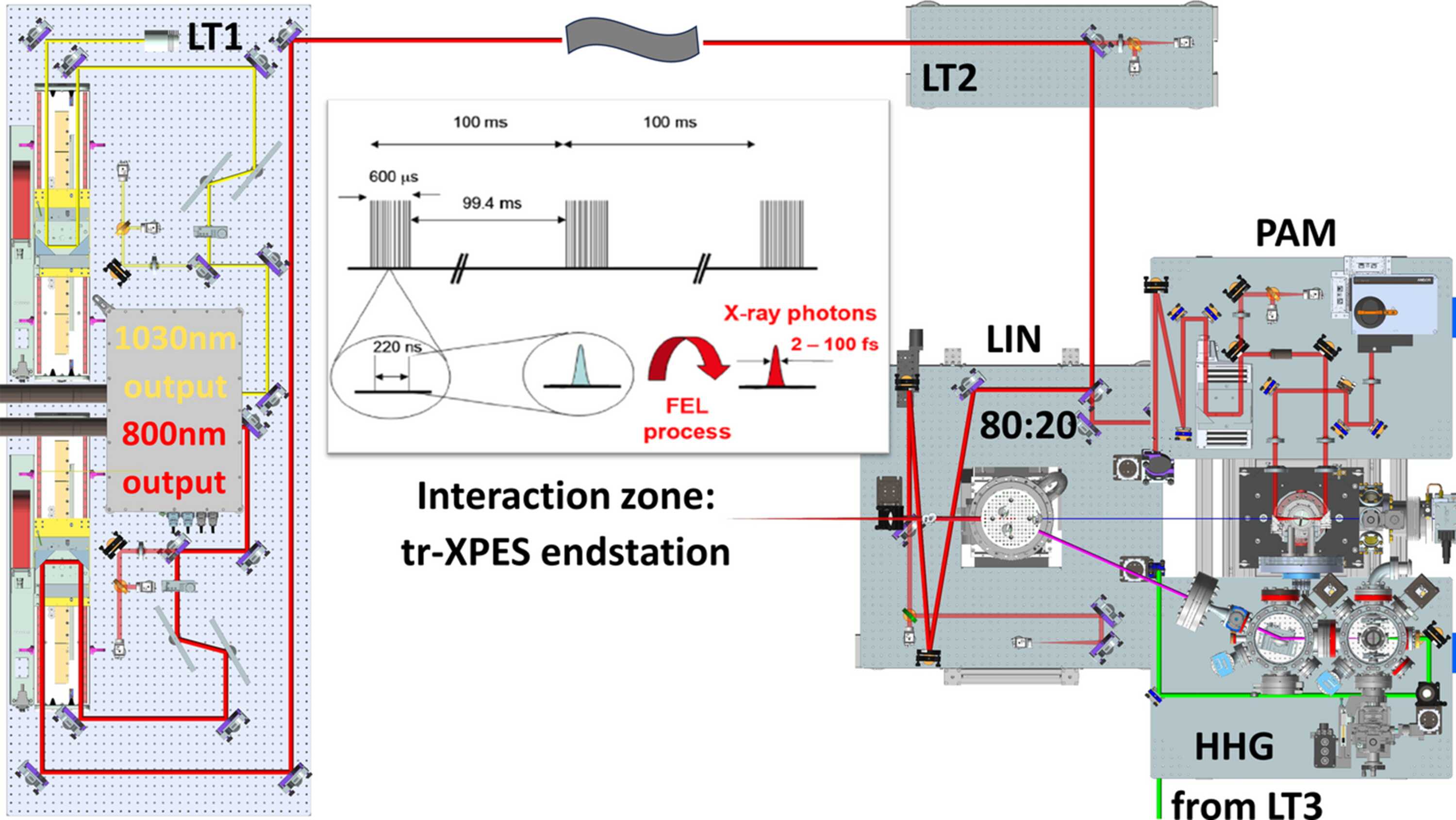

Overview of the 800 nm and 1030 nm beam paths from the central pump–probe laser entering the SXP hutch on the laser table LT1, where both beams can be attenuated and delayed in time with respect to the FEL beam. They are then routed via LT2 to the laser in-coupling system (LIN) and photon arrival time monitor (PAM) with a splitting ratio of 80:20.
