The diagnostics and laser infrastructure at the Soft X-ray Port of the European XFEL

Grychtol, P.; Vardanyan, V.; Bhardwaj, P.; Heber, M.; Doblas-Jimenez, D.; Tikhodeeva, E.; Molodtsov, S.; Izquierdo, M.

doi:10.1107/S1600577526005886

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 5

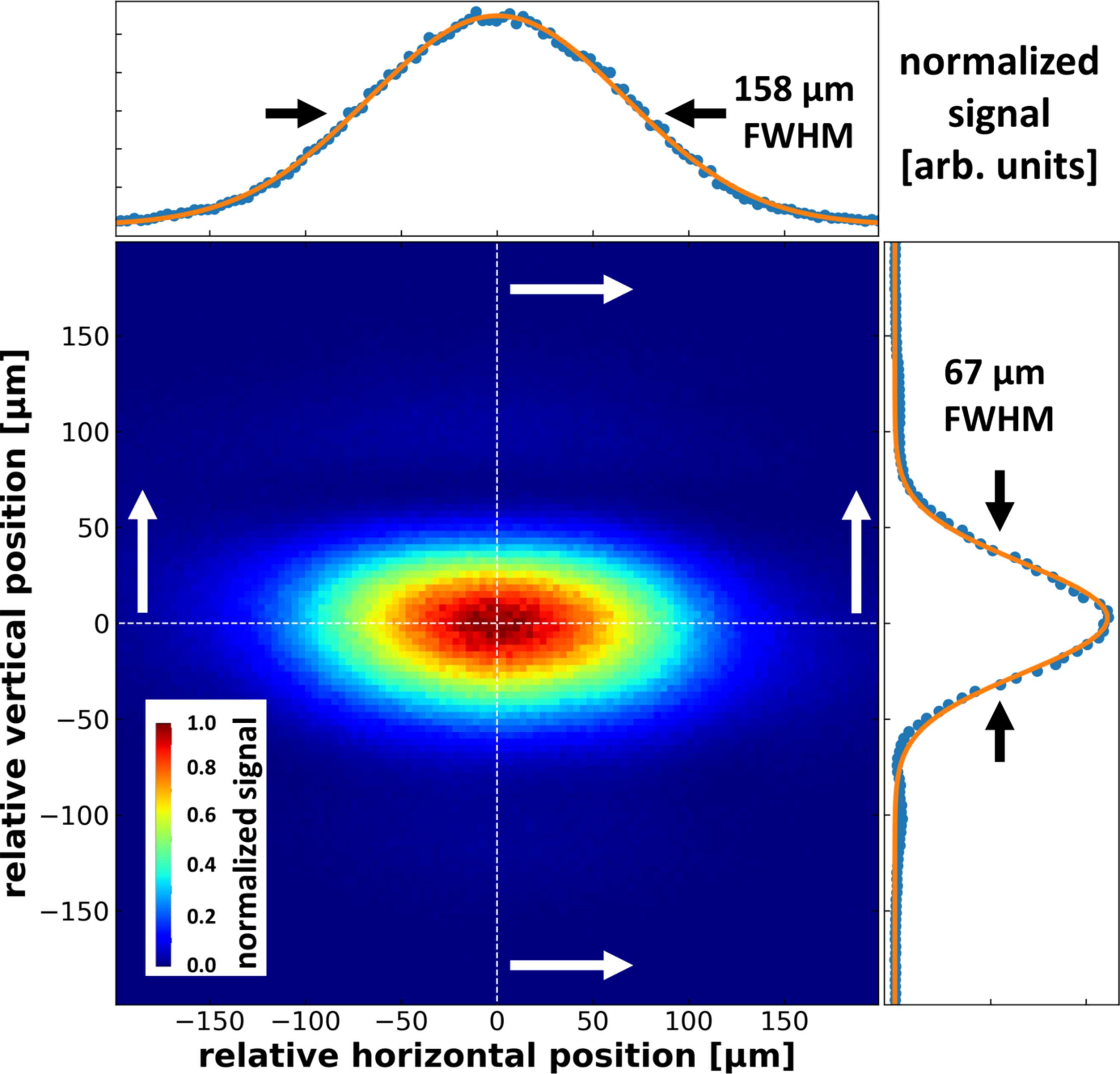

OL focus characterization from the leakage camera after the focusing optics, elongated along the horizontal axis to compensate vertical tilt of the sample.
