One million scans later: the evolution of the I16 material and magnetism beamline at Diamond Light Source

Abdeldaim, A.H.; Scatena, R.; Hawkins, J.; Nisbet, G.; Porter, D.G.; Barlow, G.; Marshall, A.; Nutter, B.; Beutier, G.; Collins, S.P.; Bombardi, A.

doi:10.1107/S1600577526006557

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 10

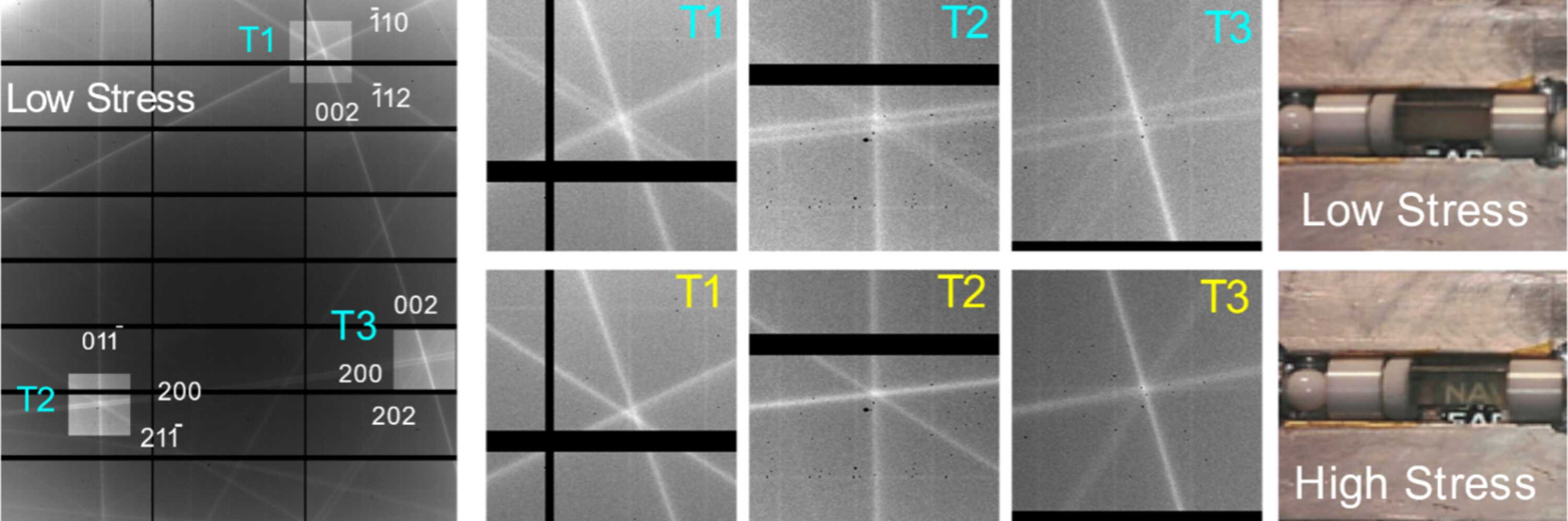

(Left) Pilatus 2M detector image at the (1.568, 1.214, 3.976) non-integer reflection measured at 9.63 keV with an applied mechanical stress of 6.8 MPa. Three regions are highlighted and enlarged for clarity. T1, T2 and T3 (cyan) represent the line intersections of coplanar reflections. T1, T2 and T3 (yellow) represent the same line intersections at high stress. (Right) Illustration of the sample being opaque and transparent at low and high stress, respectively. Figure adapted from Nisbet et al. (2023
