One million scans later: the evolution of the I16 material and magnetism beamline at Diamond Light Source

Abdeldaim, A.H.; Scatena, R.; Hawkins, J.; Nisbet, G.; Porter, D.G.; Barlow, G.; Marshall, A.; Nutter, B.; Beutier, G.; Collins, S.P.; Bombardi, A.

doi:10.1107/S1600577526006557

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 6

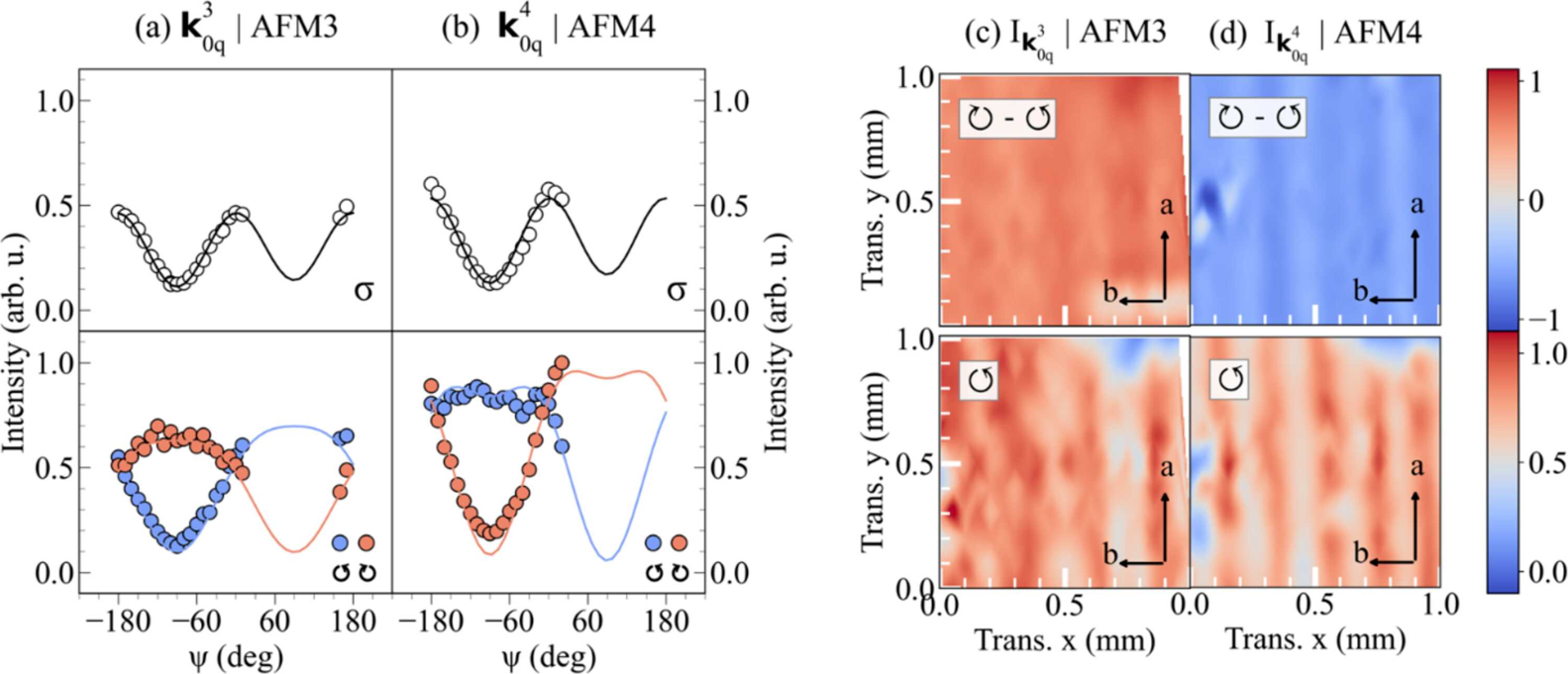

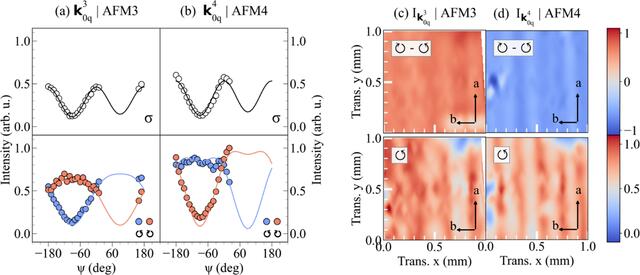

(a, b) Azimuthal dependence of the k³ = [0.165 (5),0,0] and k⁴ = [0.188 (5),0,0] satellites of the (0,0,8) reflection with linear horizontal (σ), circular left and circular right incident polarizations. (c, d) The variation in the difference in intensity of the satellite of the (0,0,8) reflection collected with circular left and right incident polarization as the beam was translated across the sample within the AFM3 and AFM4 magnetic phases, respectively. Figure adapted with permission from Vibhakar et al. (2024
