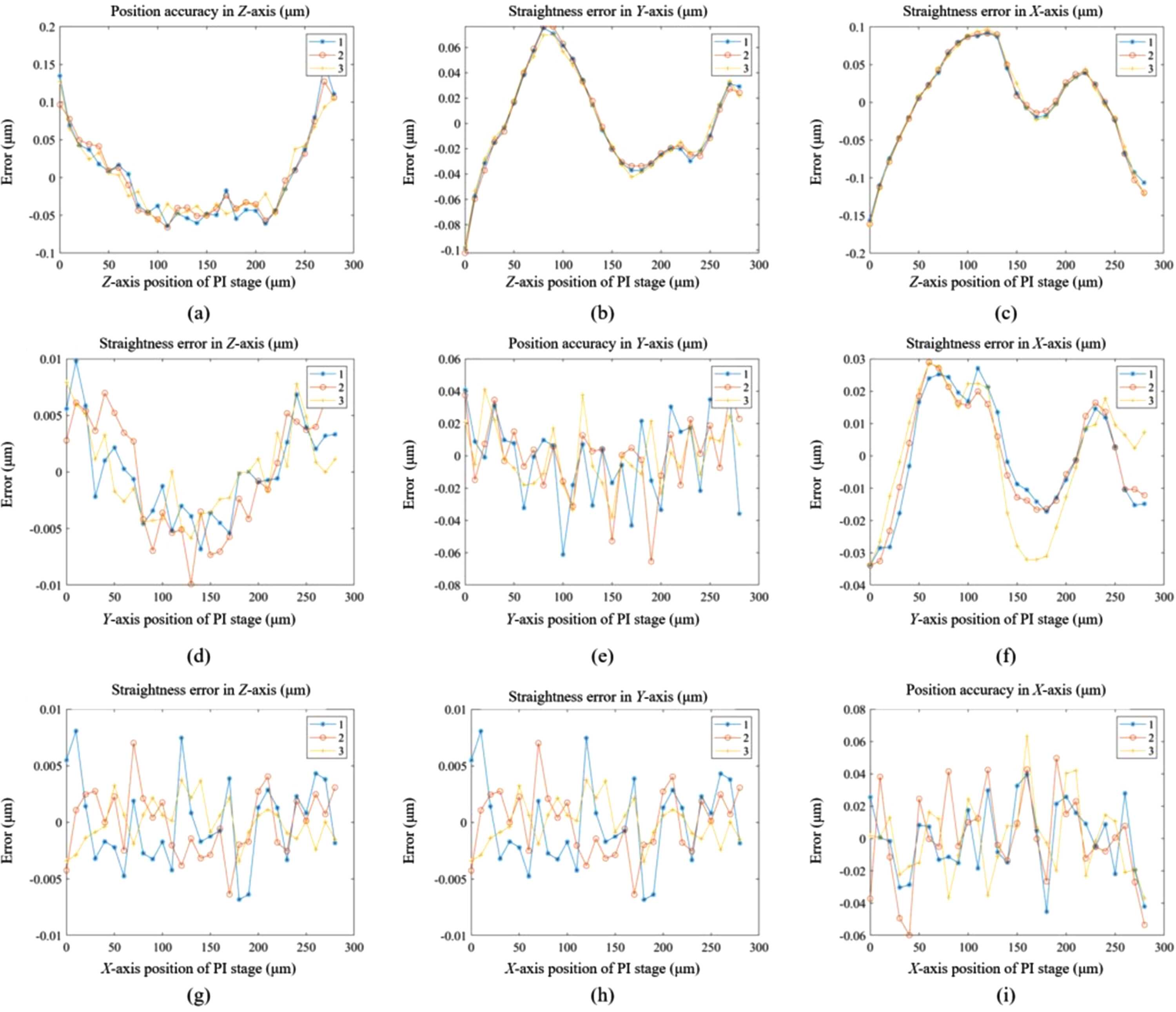

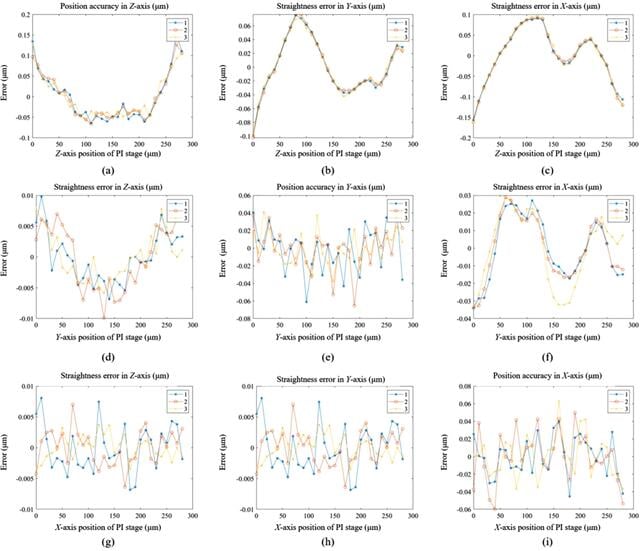

Figure 12
The difference between interferometers and the PI stage values after a linear fit. Panels (a), (b) and (c) present the measurement results along the Z-, Y- and X-axes, respectively, as the PI stage moves through its Z-axis stroke. Similarly, panels (d), (e) and (f) show the results along the Z-, Y- and X-axes when the PI stage moves through its Y-axis stroke. Panels (g), (h) and (i) show the Z-, Y- and X-axes results when it moves through its X-axis stroke.
