A beam-direction cross-vessel metrology method and error analysis for the ptychography setup at HEPS ID09

Liao, R.; Ou, Z.; Yu, H.; Wang, X.; Dong, J.; Zhou, A.; Kang, W.; Zhou, L.; Tang, S.; Li, M.; Sheng, W.

doi:10.1107/S160057752600634X

Figure 15

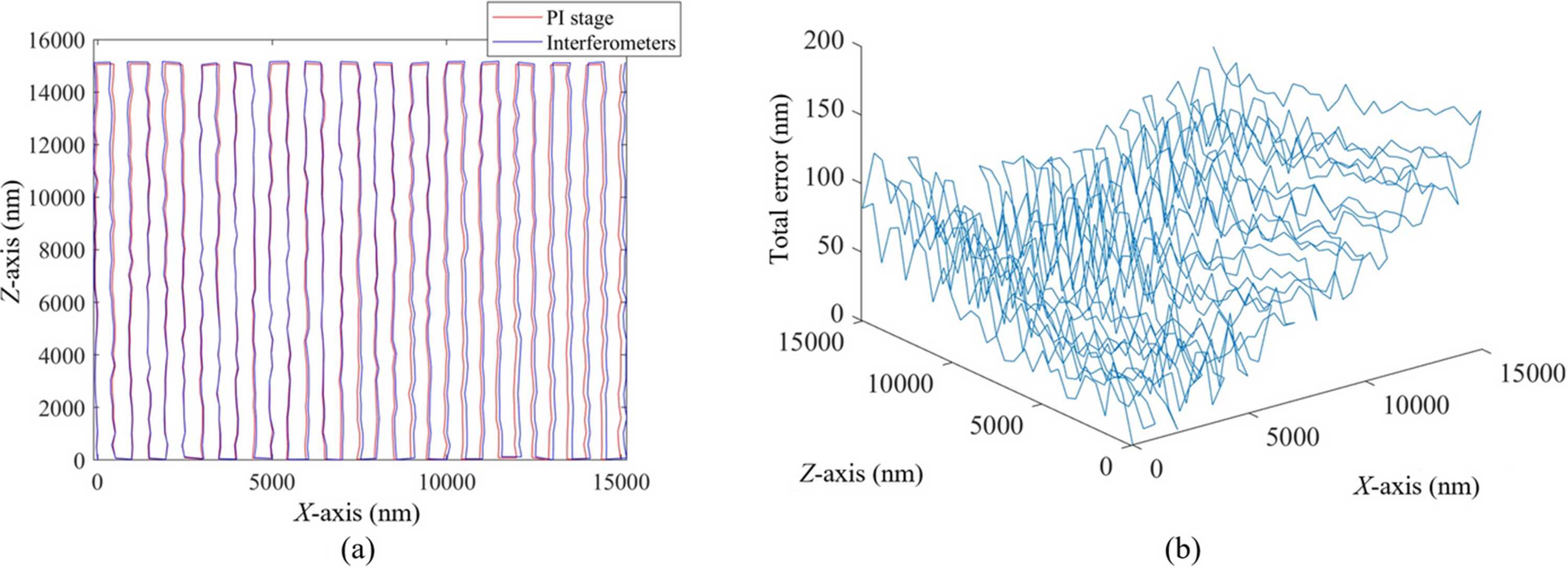

(a) Scanning trajectory from interferometers and piezo's capacitive sensors integrated in the PI stage. (b) Difference between the interferometer values and the PI stage readout.
