A beam-direction cross-vessel metrology method and error analysis for the ptychography setup at HEPS ID09

Liao, R.; Ou, Z.; Yu, H.; Wang, X.; Dong, J.; Zhou, A.; Kang, W.; Zhou, L.; Tang, S.; Li, M.; Sheng, W.

doi:10.1107/S160057752600634X

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

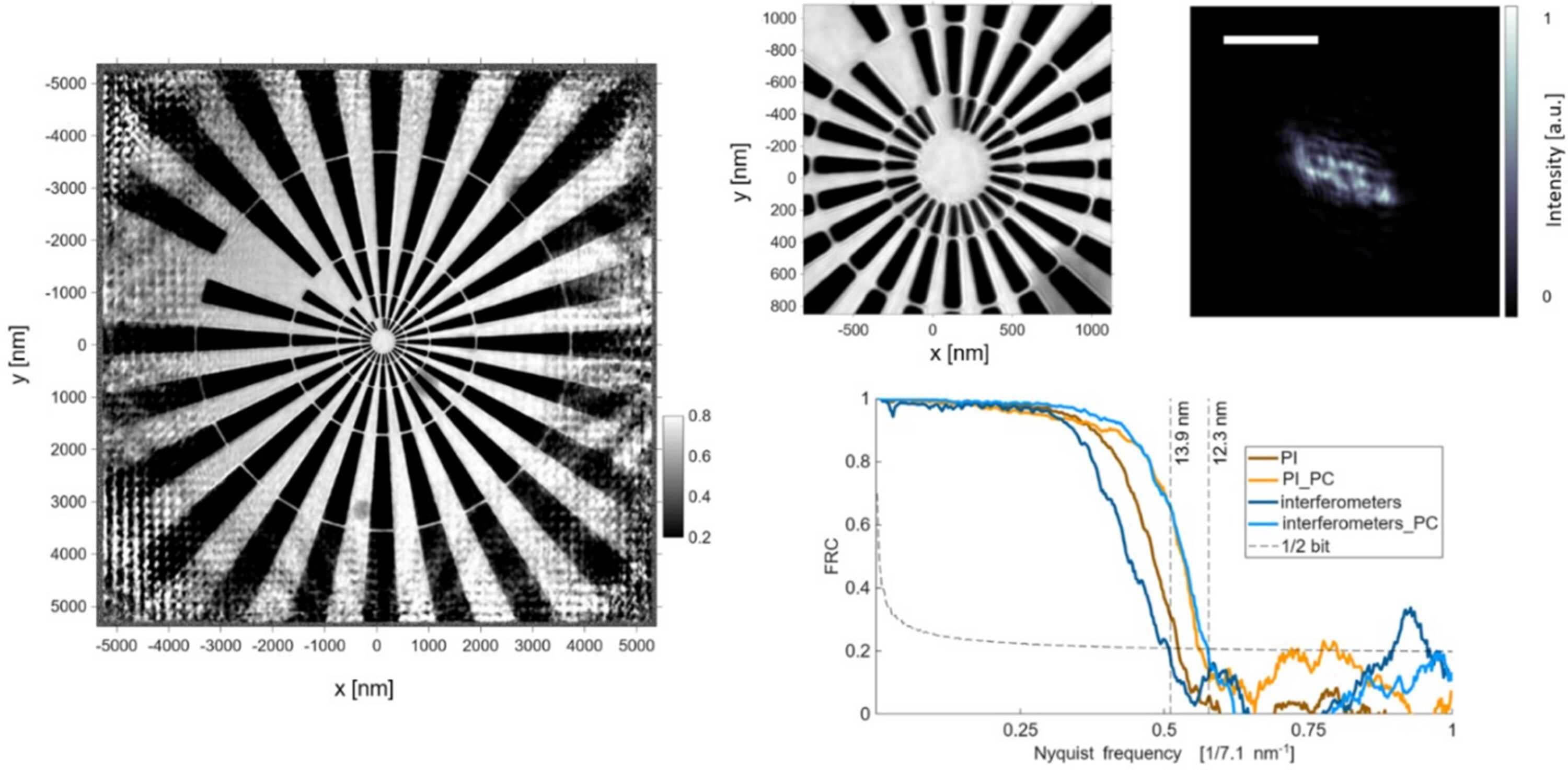

Figure 16
FRC resolution for the PI stage callback, the PI stage callback with position corrections, the interferometer system, and the interferometer system with position corrections are 13.9 nm, 12.7 nm, 14 nm and 12.3 nm, respectively. Scalebar: 2 µm.
