Single-shot hard X-ray spectrometer with uniform spatial and spectral response

Singleton, M.M.; Sun, P.; Andersen, L.; Appel, K.; Descamps, A.; Glenzer, S.H.; Göde, S.; Humphries, O.S.; Kujala, N.; McBride, E.E.; Preston, T.R.; Rahul, S.V.; Zastrau, U.; Hastings, J.B.; Fletcher, L.B.

doi:10.1107/S1600577526007599

Figure 4

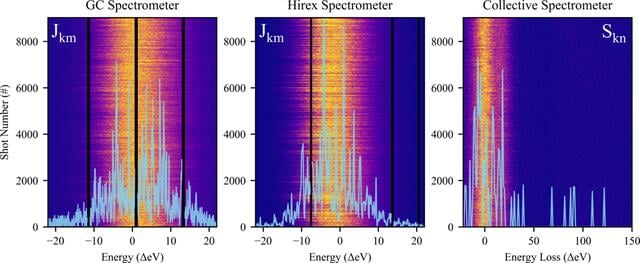

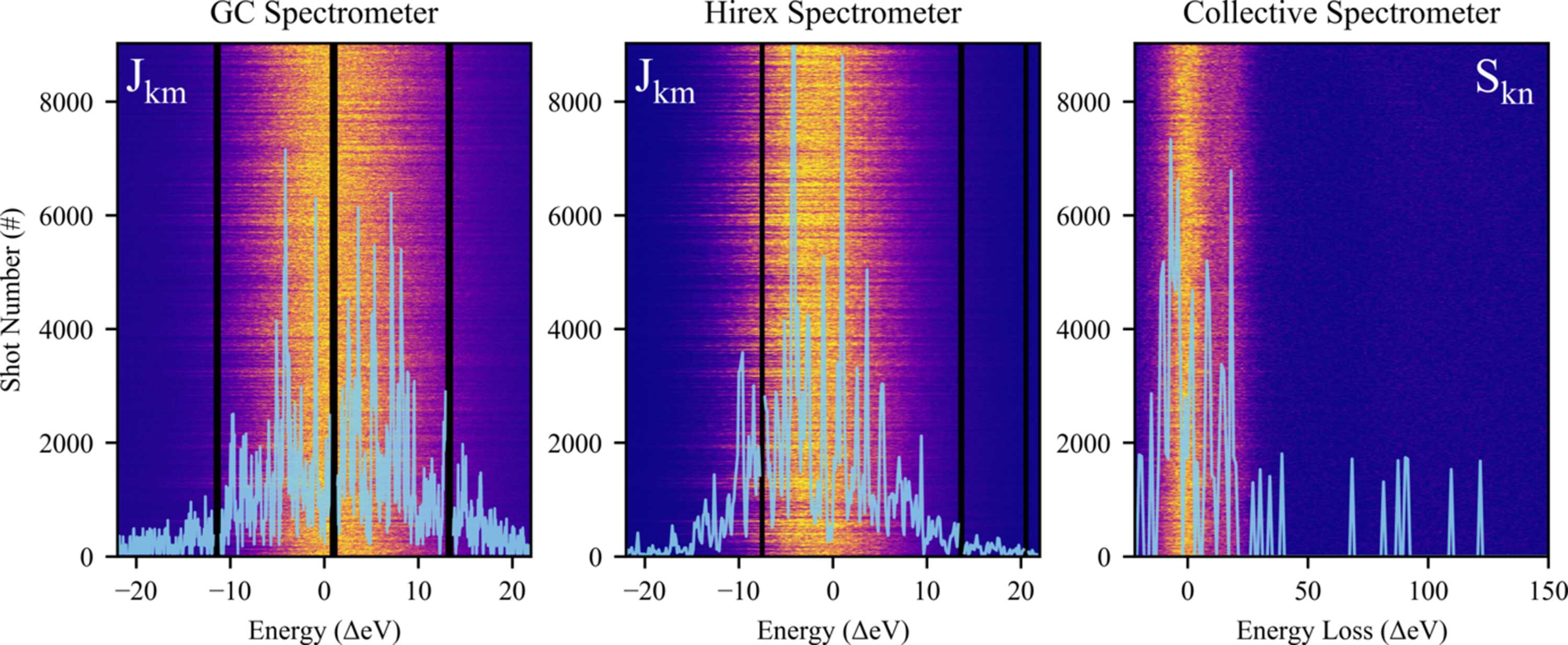

The spectral distributions of incident SASE pulses (glassy carbon and HIREX) and the scattered collective XRTS as a function of shot series, plotted with an example single-shot intensity lineout. Glassy carbon (GC) and HIREX are both represented by J_km, with collective XRTS shown as S_kn. Detector regions excluded from analysis are indicated in black.
