Single-shot hard X-ray spectrometer with uniform spatial and spectral response

Singleton, M.M.; Sun, P.; Andersen, L.; Appel, K.; Descamps, A.; Glenzer, S.H.; Göde, S.; Humphries, O.S.; Kujala, N.; McBride, E.E.; Preston, T.R.; Rahul, S.V.; Zastrau, U.; Hastings, J.B.; Fletcher, L.B.

doi:10.1107/S1600577526007599

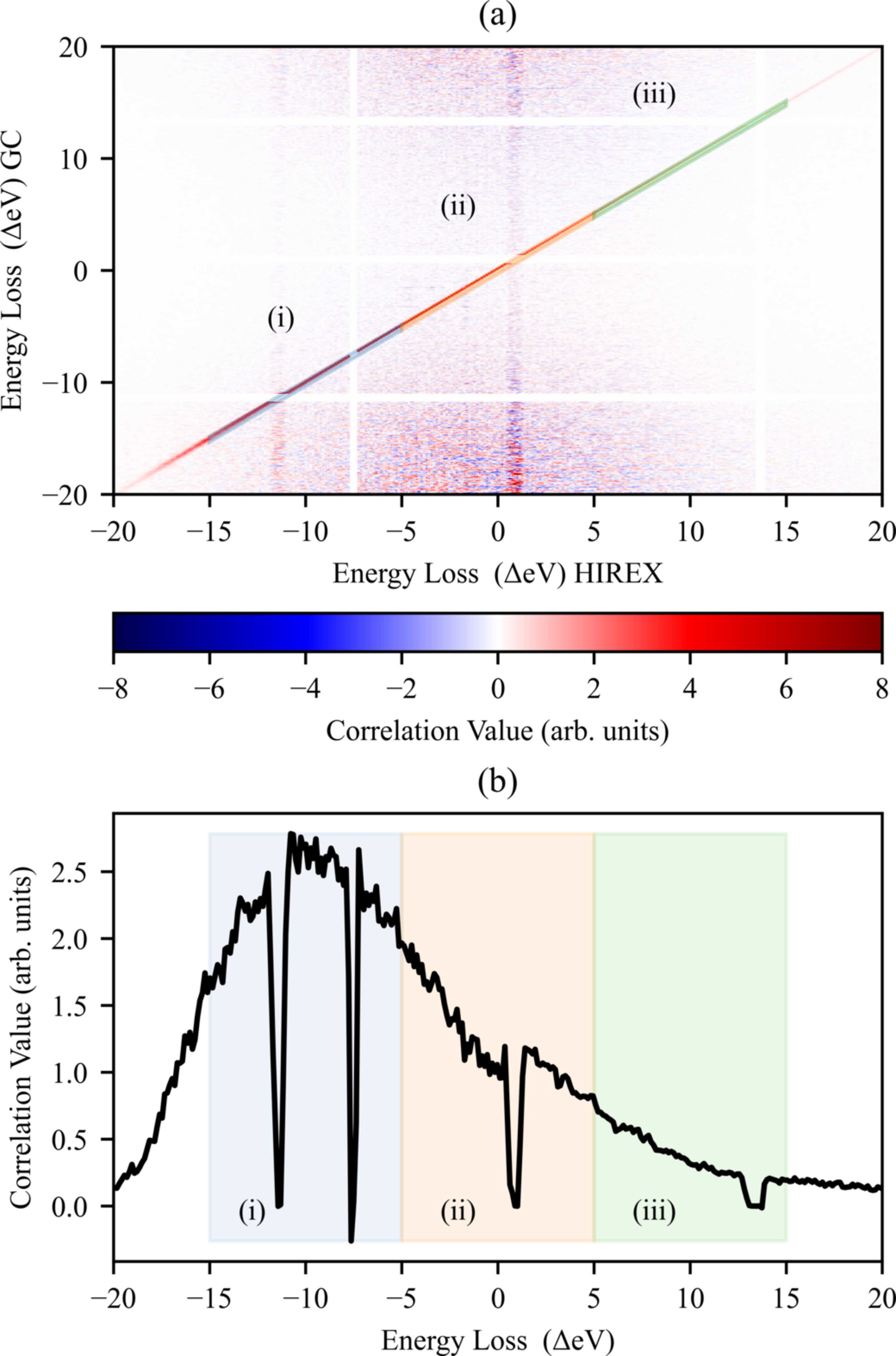

Figure 5
(a) The response matrix R_mn of the glassy carbon and HIREX spectrometers with the regions of interest along the line of equal energy highlighted. The white gaps indicate masked detector regions. (b) The averaged correlation intensity values along the diagonal of the the response matrix R_mn are plotted and separated into three energy regimes: (i) −15 to −5 eV, (ii) −5 to 5 eV and (iii) 5 to 15 eV.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 5| September 2026|

https://doi.org/10.1107/S1600577526007599
