Synchrotron-based multi-scale biological imaging inside biocontainment environments

Cardoso, M.B.; Rabelo, R.S.; Polo, C.C.; Sanfelici, L.; Geraldes, R.R.; Moreno, G.B.Z.L.; Ramos, H.P.P.; dos Santos, G.R.; Pinto, A.C.; Lordano Luiz, S.A.; Westfahl, H.

doi:10.1107/S1600577526007083

Figure 7

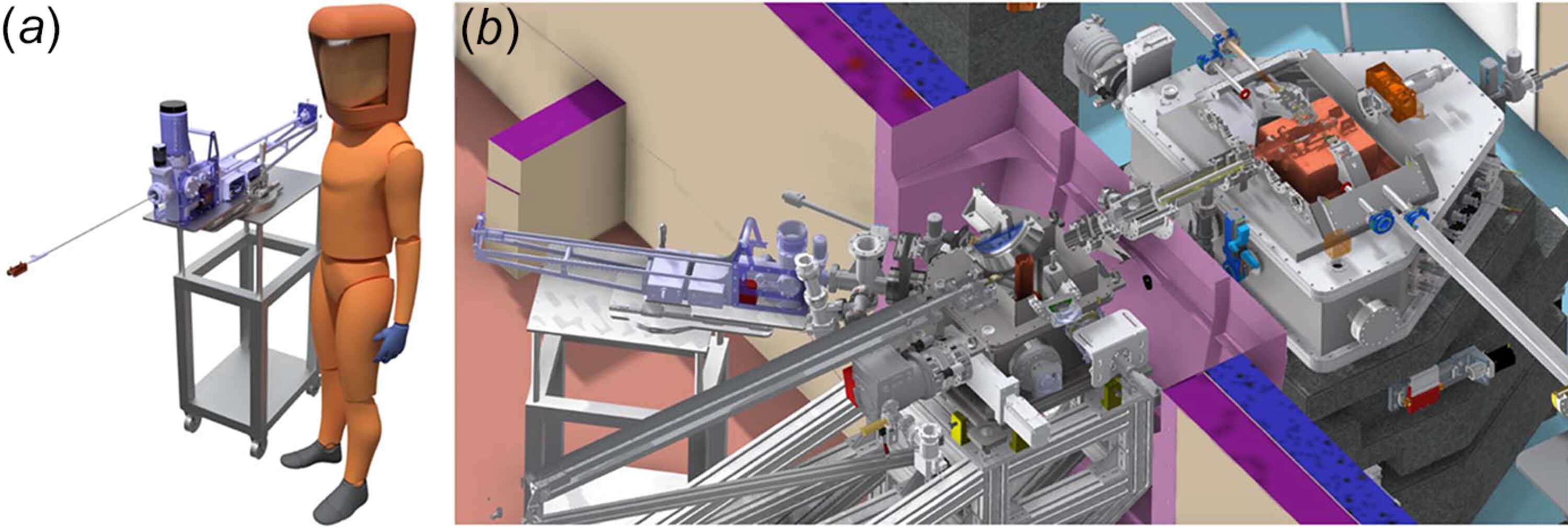

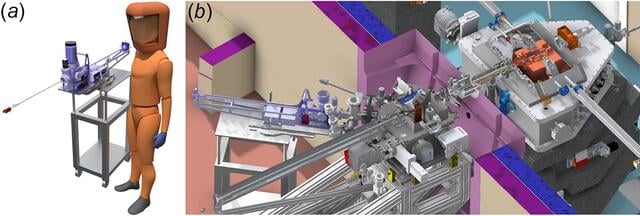

(a) Cryogenic transfer shuttle used to transport biological samples under controlled temperature and containment conditions from preparation laboratories to the beamline. (b) Docking interface between the cryogenic shuttle and the loading chamber, enabling sealed coupling within a controlled environment. Automated transfer system connecting the loading chamber to the sample environment, enabling insertion and retrieval without compromising containment.
