The prototype DynamiX camera system – a high-frame-rate high-dynamic-range hard X-ray integrating detector for fourth-generation synchrotrons

Knowles, S.; Ballard, D.; Banks, D.; Bell, S.; Bettelli, M.; Church, I.; Dainty, A.; Davis, A.; Dhamgaye, V.; Fox, O.; French, M.; Gardiner, T.; Ghorbanian, N.; Harris, J.; Hart, M.; Koorikkat, A.; Larkin, M.; Lipp, J.; Matheson, J.; Nicholls, T.; Nobes, J.; Prydderch, M.; Sawhney, K.; Veale, M.C.; Wilson, M.D.; Zanettini, S.

doi:10.1107/S1600577526006375

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 11

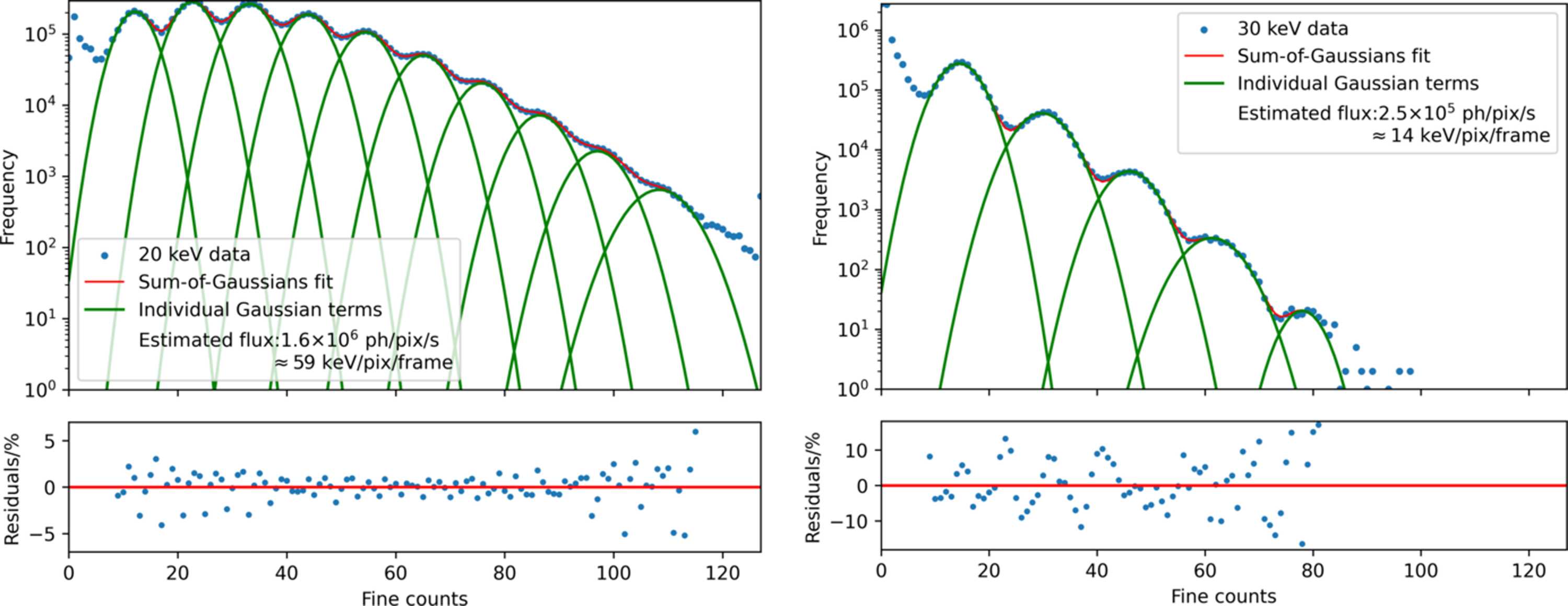

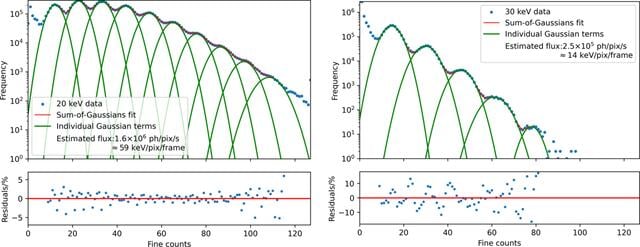

Sum-of-Gaussians fits to histograms of (left) 20 keV and (right) 30 keV photon peaks from a single pixel, allowing an estimation of the average kiloelectronvolts deposited per frame in the pixel (given in the insets). Only points shown in the residuals contributed to the fits.
