The prototype DynamiX camera system – a high-frame-rate high-dynamic-range hard X-ray integrating detector for fourth-generation synchrotrons

Knowles, S.; Ballard, D.; Banks, D.; Bell, S.; Bettelli, M.; Church, I.; Dainty, A.; Davis, A.; Dhamgaye, V.; Fox, O.; French, M.; Gardiner, T.; Ghorbanian, N.; Harris, J.; Hart, M.; Koorikkat, A.; Larkin, M.; Lipp, J.; Matheson, J.; Nicholls, T.; Nobes, J.; Prydderch, M.; Sawhney, K.; Veale, M.C.; Wilson, M.D.; Zanettini, S.

doi:10.1107/S1600577526006375

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

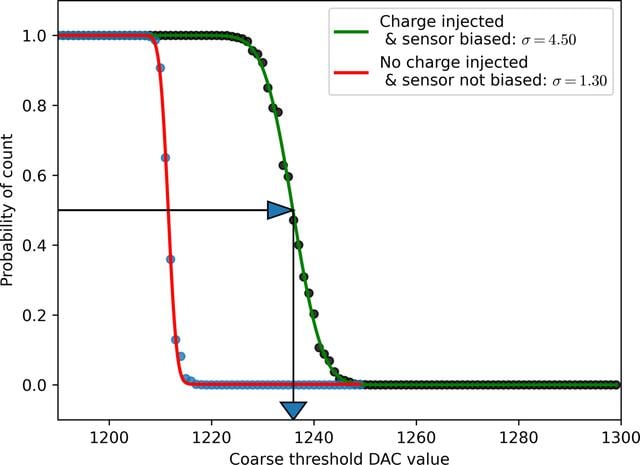

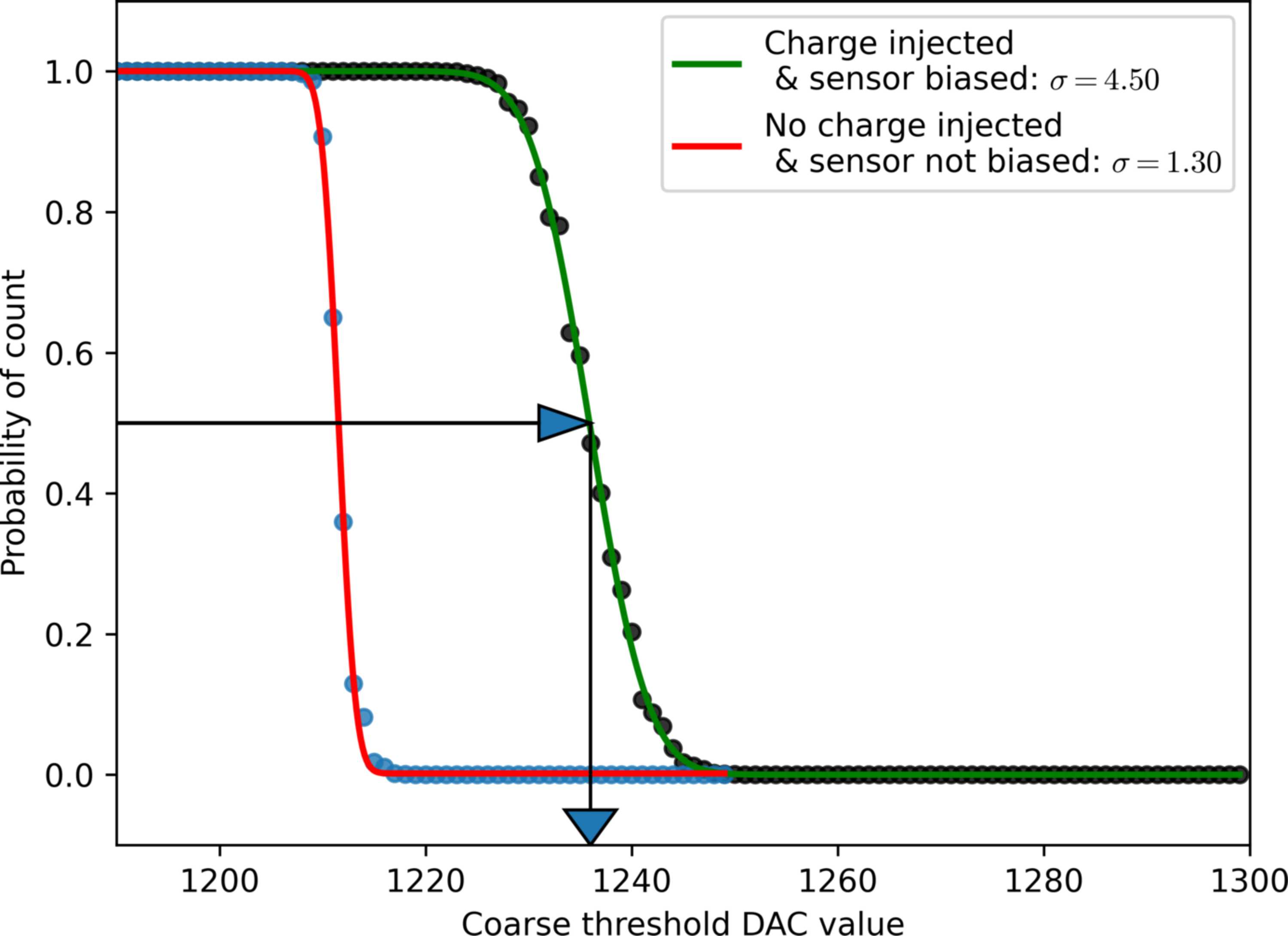

Figure 17
The coarse threshold is swept in steps of one DAC code while injecting 64 fine counts = 1 coarse count, to find the value which gives a 50% probability of triggering for this pixel. Data points are averaged over 10000 frames. A similar threshold sweep with no charge injection and no sensor bias is shown for comparison.
