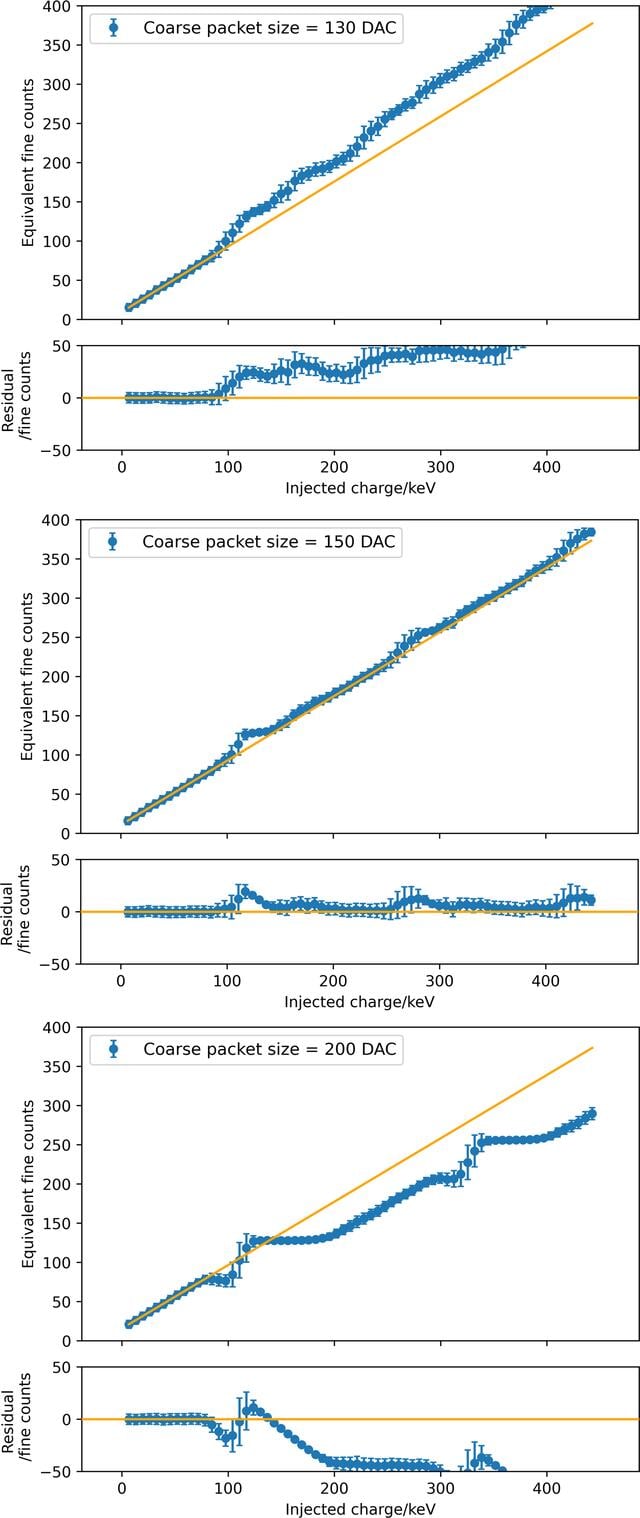

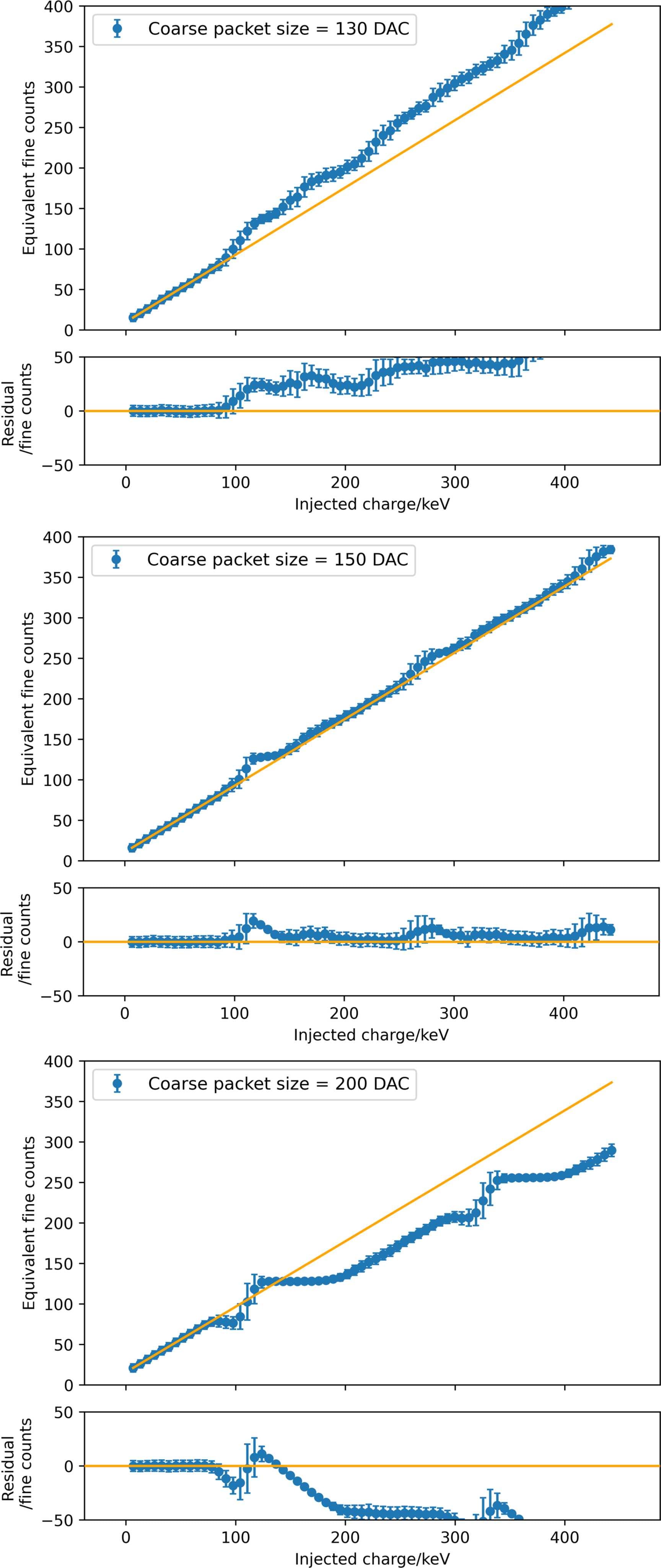

Figure 19
Quality of calibration when the coarse cancellation packet size DAC code is (top) too small, (middle) close to optimum and (bottom) too large. Each point is the average of 10000 frames and the error bars are the standard deviations of the equivalent fine count across those 10000 frames.
