The prototype DynamiX camera system – a high-frame-rate high-dynamic-range hard X-ray integrating detector for fourth-generation synchrotrons

Knowles, S.; Ballard, D.; Banks, D.; Bell, S.; Bettelli, M.; Church, I.; Dainty, A.; Davis, A.; Dhamgaye, V.; Fox, O.; French, M.; Gardiner, T.; Ghorbanian, N.; Harris, J.; Hart, M.; Koorikkat, A.; Larkin, M.; Lipp, J.; Matheson, J.; Nicholls, T.; Nobes, J.; Prydderch, M.; Sawhney, K.; Veale, M.C.; Wilson, M.D.; Zanettini, S.

doi:10.1107/S1600577526006375

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

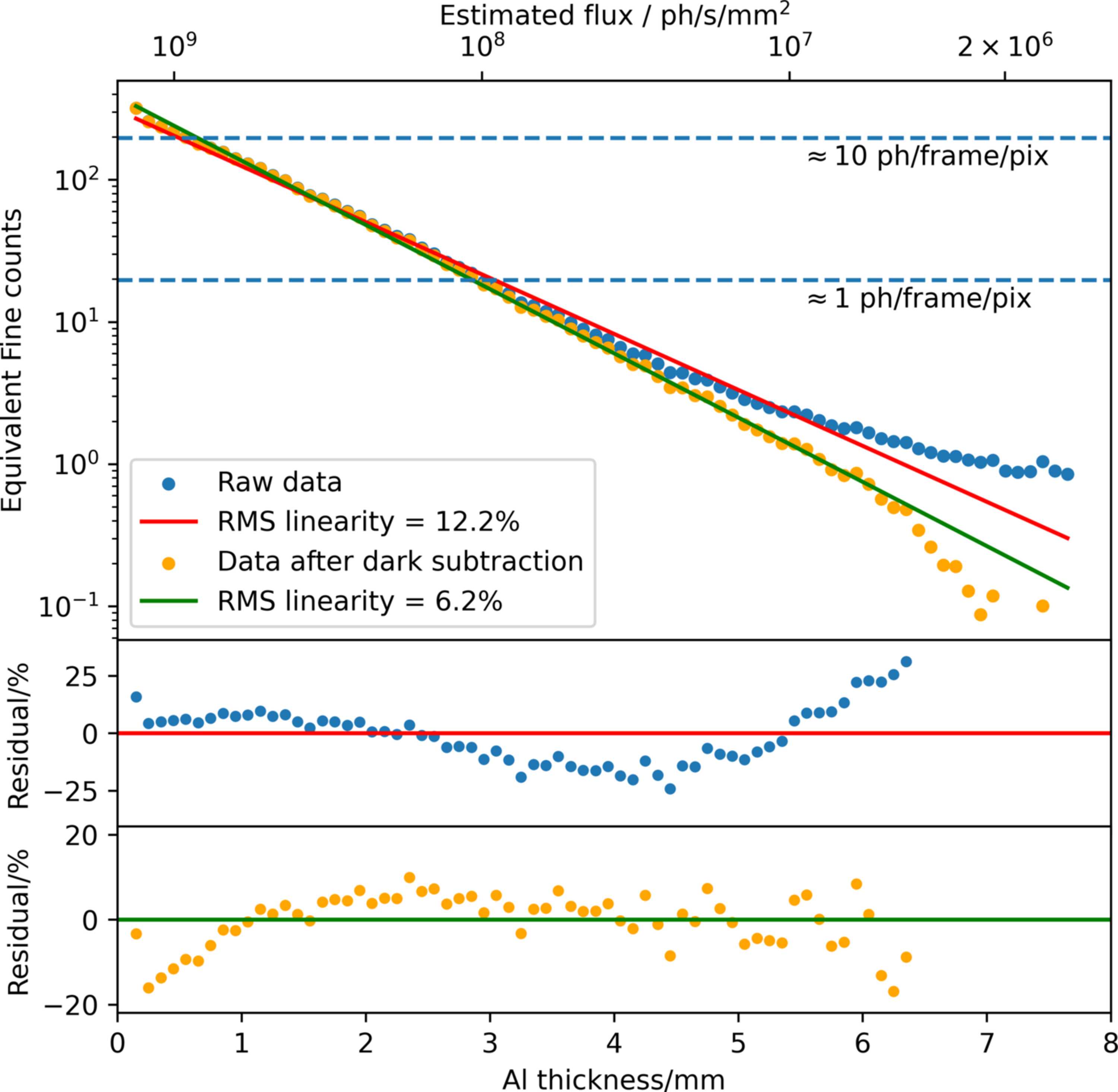

Figure 20
Varying the flux of a 20 keV beam with an aluminium wedge and recording the total equivalent fine counts in a pixel, averaged over 500000 frames, as a function of thickness. The horizontal estimates of 1 and 10 photons per pixel per frame are based on the calibrations in Section 5.3

, but note that no correction has been made here for the `excess leakage current' offset. Only the points shown in the residuals contributed to the linear fits and the r.m.s. linearity calculation.
