A high-energy X-ray beamline for materials science research at SPring-8: BL15XU

Ohsumi, H.; Higo, Y.; Hayashi, Y.; Kim, J.; Tsujino, N.; Kakizawa, S.; Irifune, T.; Ohuchi, T.; Kono, Y.; Yumoto, H.; Koyama, T.; Yamazaki, H.; Senba, Y.; Ohashi, H.; Takano, H.; Sugahara, M.; Osaka, T.; Yabashi, M.

doi:10.1107/S1600577526006387

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

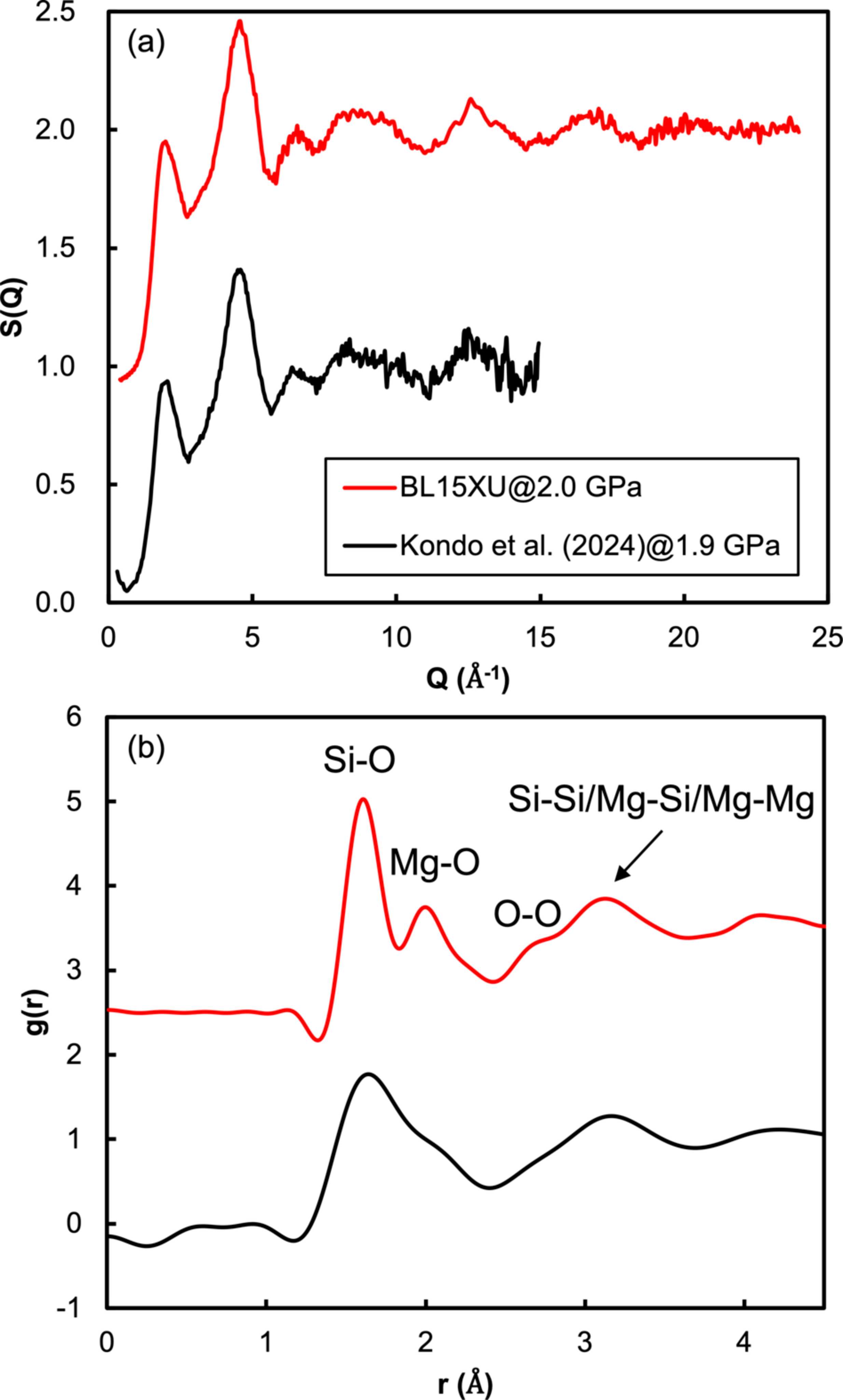

Figure 15
Structural analysis of MgSiO₃ glass at ∼2 GPa. (a) Structure factor S(Q) and (b) PDF g(r) measured at BL15XU, compared with the result from Kondo et al. (2024

). The S(Q) and g(r) data from BL15XU are displayed with vertical offsets of 1.0 and 2.5, respectively. This comparison demonstrates the capability of the BL15XU setup to access a significantly wider Q range (up to ∼24 Å⁻¹). Consequently, the main conclusion drawn from this extended Q range is a highly improved real-space resolution in g(r), which enables the clear separation and distinct observation of the closely spaced Si–O and Mg–O peaks.
