A high-energy X-ray beamline for materials science research at SPring-8: BL15XU

Ohsumi, H.; Higo, Y.; Hayashi, Y.; Kim, J.; Tsujino, N.; Kakizawa, S.; Irifune, T.; Ohuchi, T.; Kono, Y.; Yumoto, H.; Koyama, T.; Yamazaki, H.; Senba, Y.; Ohashi, H.; Takano, H.; Sugahara, M.; Osaka, T.; Yabashi, M.

doi:10.1107/S1600577526006387

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

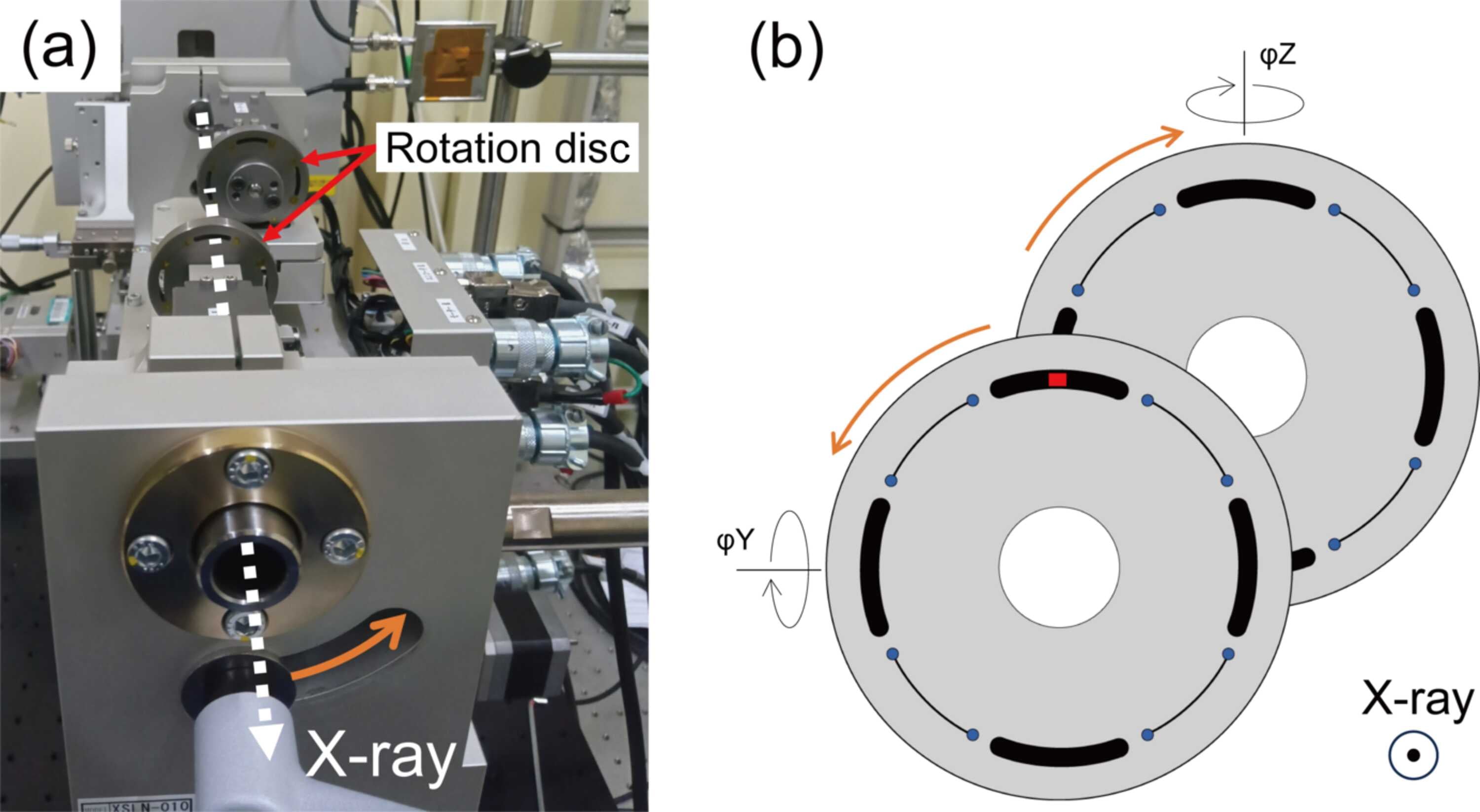

Figure 16
Rotational slit system in EH2. (a) A white dashed arrow and an orange solid arrow indicate the X-ray path and the rotation direction of the entire system around the X-ray path, respectively. (b) Schematic illustration of the rotation discs. Wide slits are utilized for X-ray radiography observation, while narrow slits are used for 2D-XRD measurements. Orange solid arrows and a red square denote the rotation directions of the discs and the beam position, respectively. The ends of the narrow slits are machined into large-radius circles and filled with tungsten rods (indicated in blue).
