Figure 3

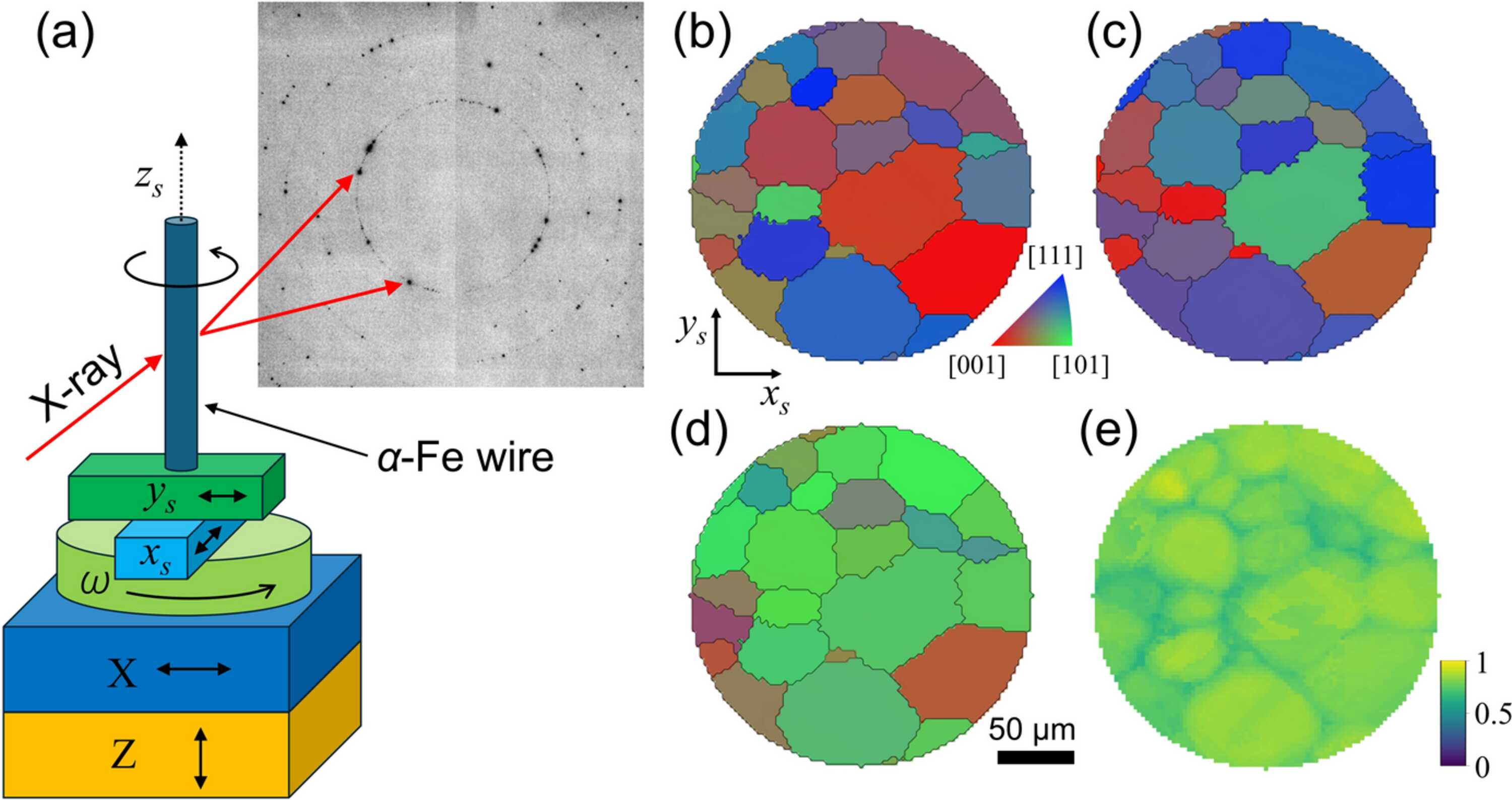

S3DXRD configuration and reconstructed maps of the α-Fe wire. (a) Experimental setup at EH1 for S3DXRD. A rotation stage (ω) is mounted on the X–Z translation stage, allowing the lateral shift of the rotation axis with the X stage. Above the rotation stage, a pair of xs–ys alignment stages supports the positioning of the α-Fe specimen. (b) Reconstructed IPF-xs and (c) IPF-ys maps show a seemingly random arrangement of grain orientations, whereas (d) IPF-zs map displays a grain texture with a preferred orientation. (e) Completeness map clearly highlights the grain boundaries in the polycrystalline α-Fe wire.
