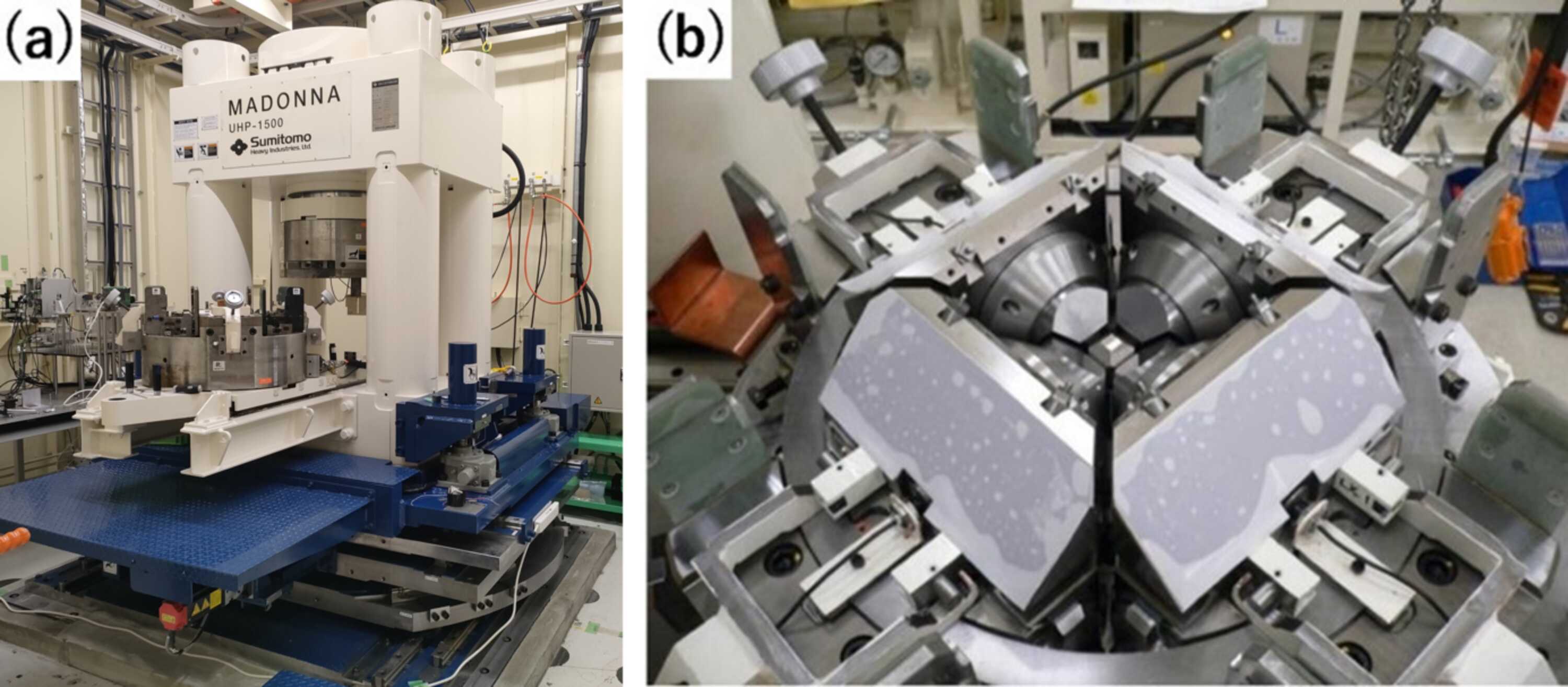

Figure 4
The D-DIA apparatus integrated into the 1500 ton uniaxial press, MADONNA. (a) Overall view of the apparatus. (b) First-stage anvils and sliding blocks positioned on the MADONNA guide block. Four displacement sensors are mounted on a steel holding ring, which remains unaffected by the deformation of the guide block, to measure anvil displacement.
