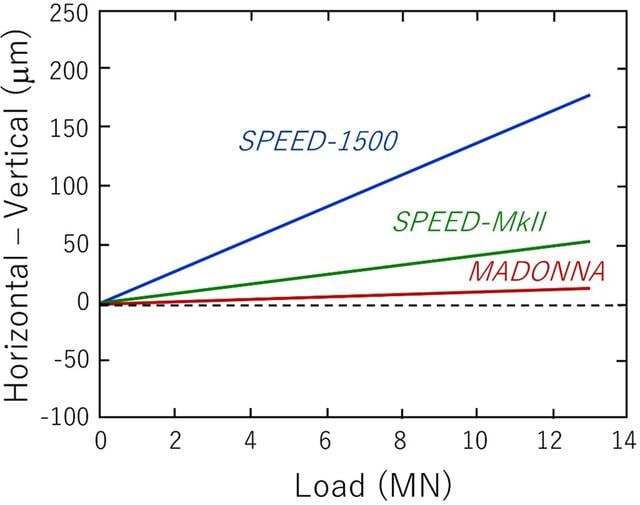

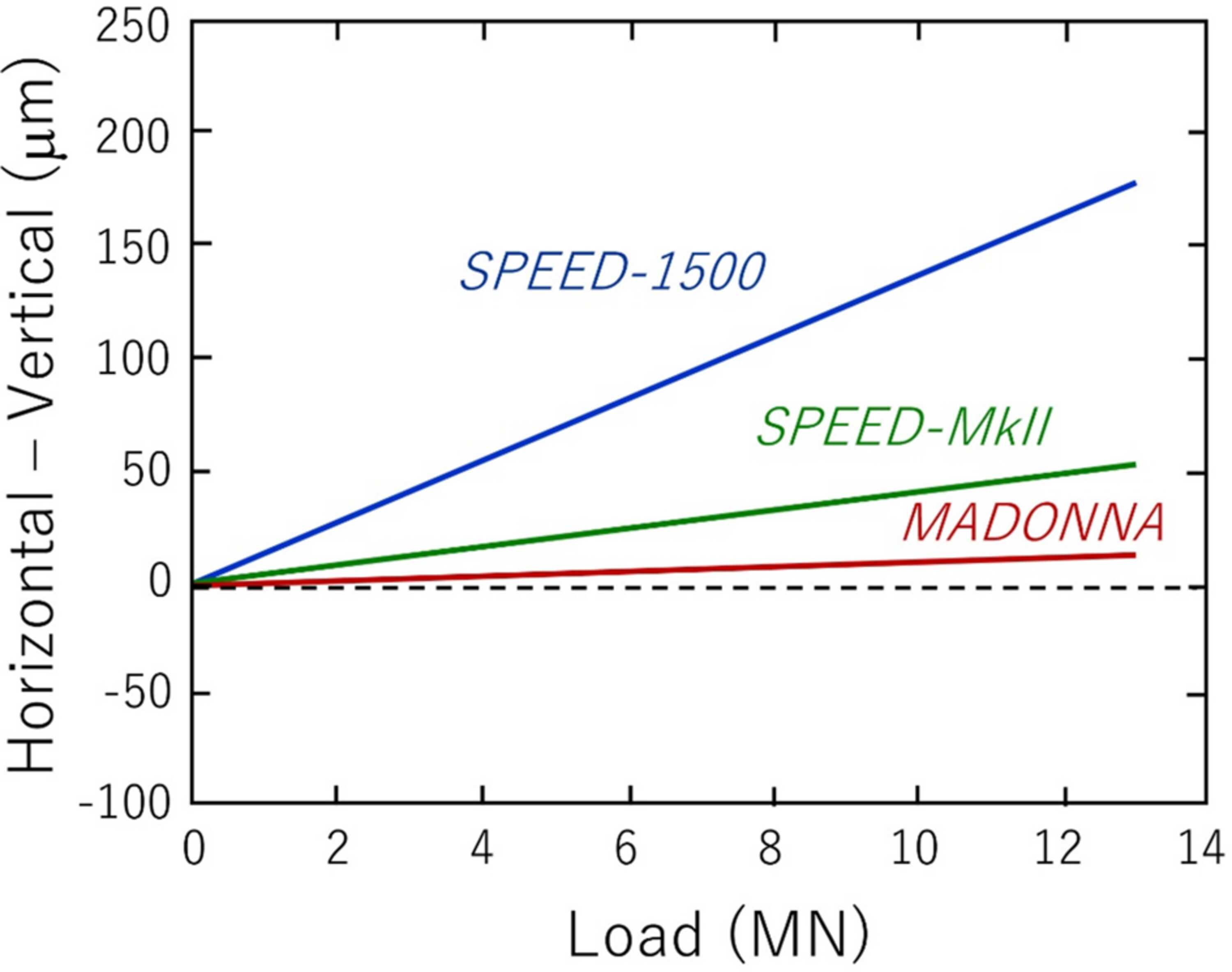

Figure 6
Deformation of the cubic space due to elastic deformation of guide blocks in DIA-type apparatuses at SPring-8. The difference between the horizontal and vertical edge lengths of a compressed copper cube is plotted against the press load. In MADONNA, the difference remains within 10 µm even at a load of ∼10 MN, whereas values reach approximately 150 µm and 50 µm for SPEED-1500 and SPEED-Mk II, respectively (after Katsura et al., 2004View full citation; Irifune, 2010View full citation). Note that these plots represent the verified characteristic operational calibration curves derived directly from the empirical experimental data points compiled in the referenced primary studies.
