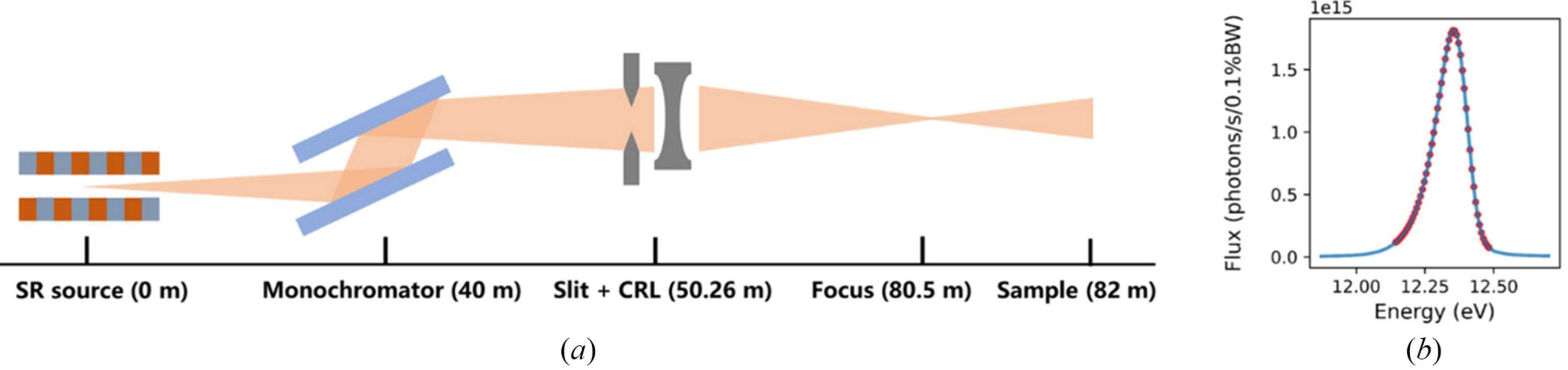

Figure 2
(a) Beamline layout illustrating the propagation of undulator radiation from the source through a multilayer monochromator operated in pink-beam mode, followed by a coherent slit and a CRL system, focused at 80.5 m and finally defocused at the experimental station. (b) Spectral flux distribution calculated by SRW code showing the finite bandwidth of the pink beam around the first harmonic and 50 discrete energy points were sampled around the first-harmonic peak.
