An efficient wave-optics framework for partially coherent pink X-ray beam simulation and analysis

Wang, S.; Xu, H.; Zhou, L.; Li, M.

doi:10.1107/S1600577526007034

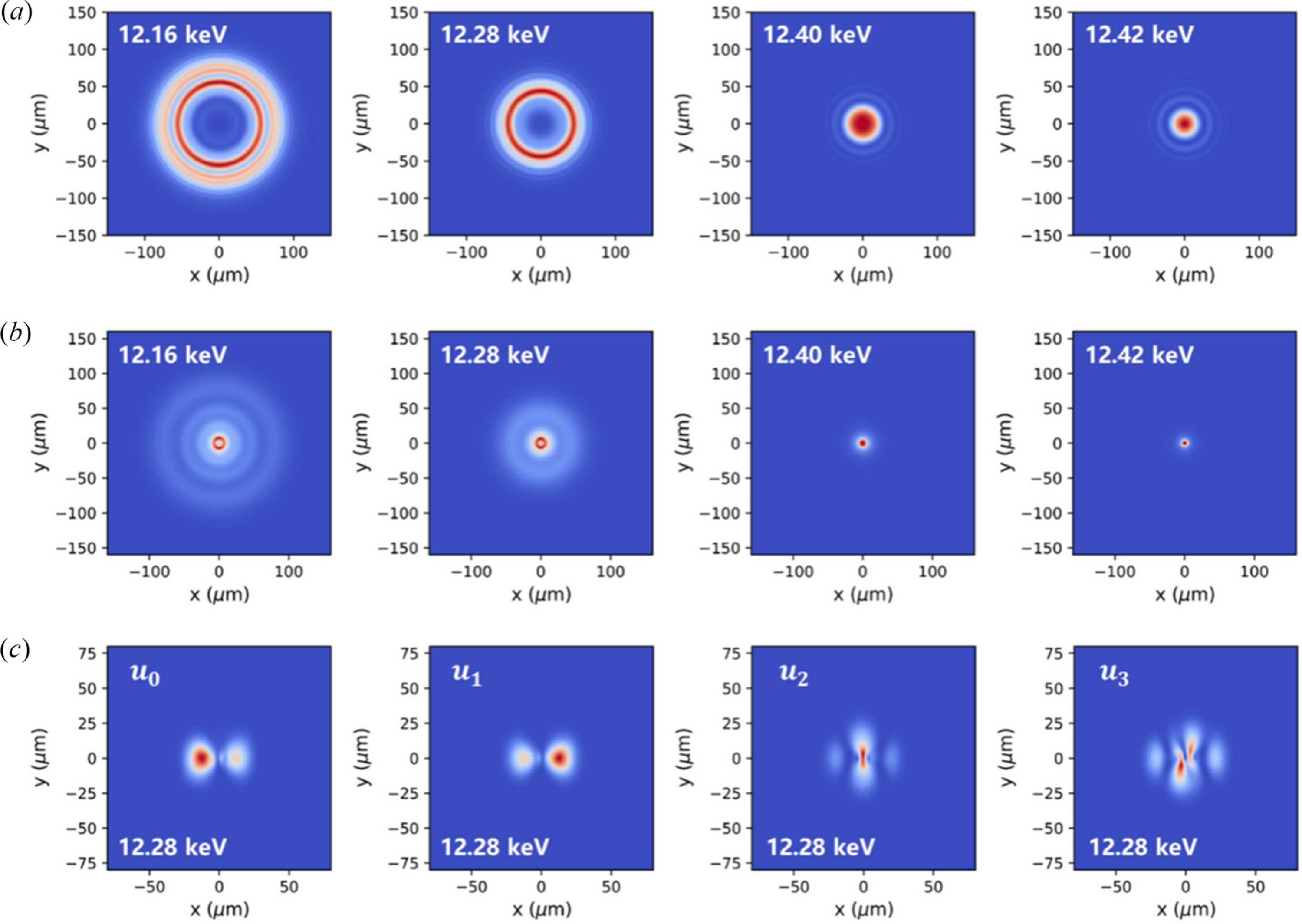

Figure 4
(a) Intensity distributions of the reference wavefronts E₀(γ₀, r, ω) calculated using SRW at four photon energies across the first undulator harmonic. (b) The wavefronts are back-propagated from the observation screen to the virtual source plane. (c) The first four dominant coherent modes u_i(r) at 12.28 keV obtained using the proposed MCBC+HI-SVD framework.
