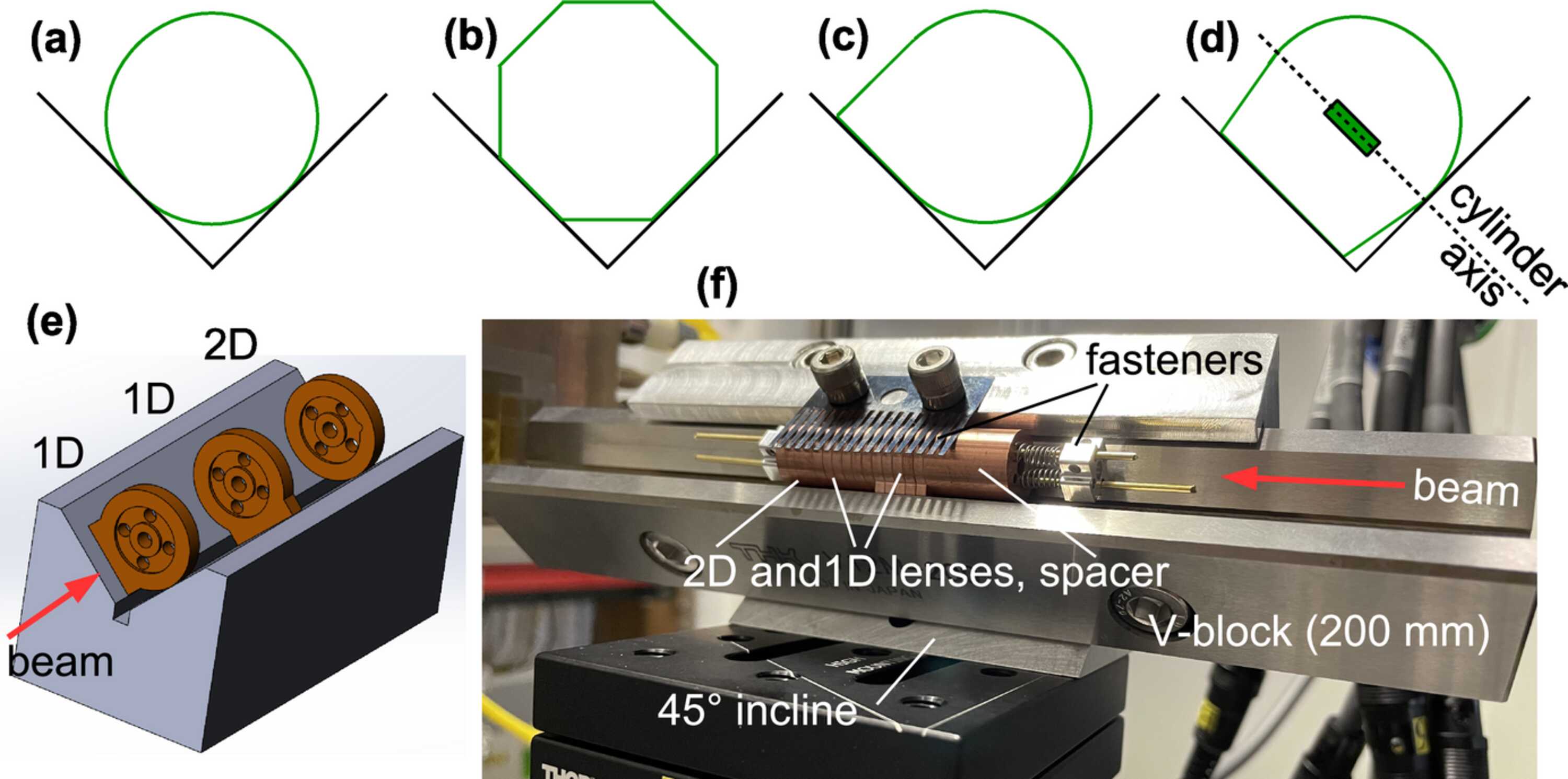

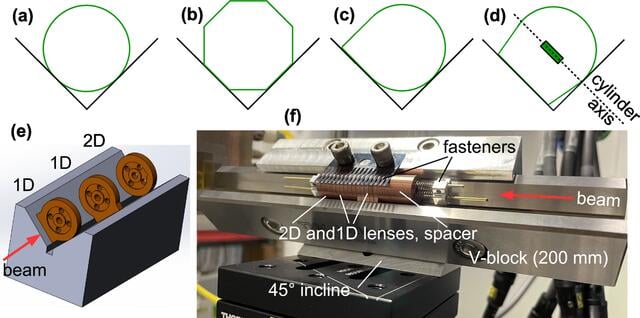

Figure 1
Mounting of (a) a 2D focusing element circular frame and (b, c, d) various considered 1D focusing frames in a V-block, with (d) chosen. (e) Combining both 1D and 2D types in the same V-block, which is (f) rotated at 45° inclination for the cylinder axes of 1D focusing lenses to be oriented horizontally or vertically.
